Cynosure Palomar Icon Laser

CYNOSURE PALAMOR ICON

A New Era in Laser and Optimized Light Technology

The Icon Aesthetic System offers high peak powers, state-of-the-art cooling, built in calibration, and the Skintel Readerthe only FDA-cleared melanin reader resulting in fast treatments with excellent outcomes.

With the Icon system, aesthetic practices can provide the most popular treatments, including:

• laser skin resurfacing
• laser wrinkle reduction
• laser scar and stretch mark treatment
• permanent hair reduction
• vessel and pigment clearance
• leg vein clearance

The systems patented innovations include:

• The Skintel Melanin Reader: A revolutionary device that determines the average melanin density of skin prior to treatment.
• Power: Delivering a maximum effective energy1 of over 350 joules, the Palomar Icon is the most powerful laser and optimized light aesthetic platform.2

Palomar Icon Aesthetic System Mechanism of Action

• Advanced Contact CoolingTM: Cooling maintains temperature at 5 degrees Celsius during treatments for enhanced comfort and skin protection.
• Hexagonal XFTM Microlens: High-speed, non-ablative fractional resurfacing with increased surface coverage typically allows for a full face, one-pass treatment in under 15 minutes.

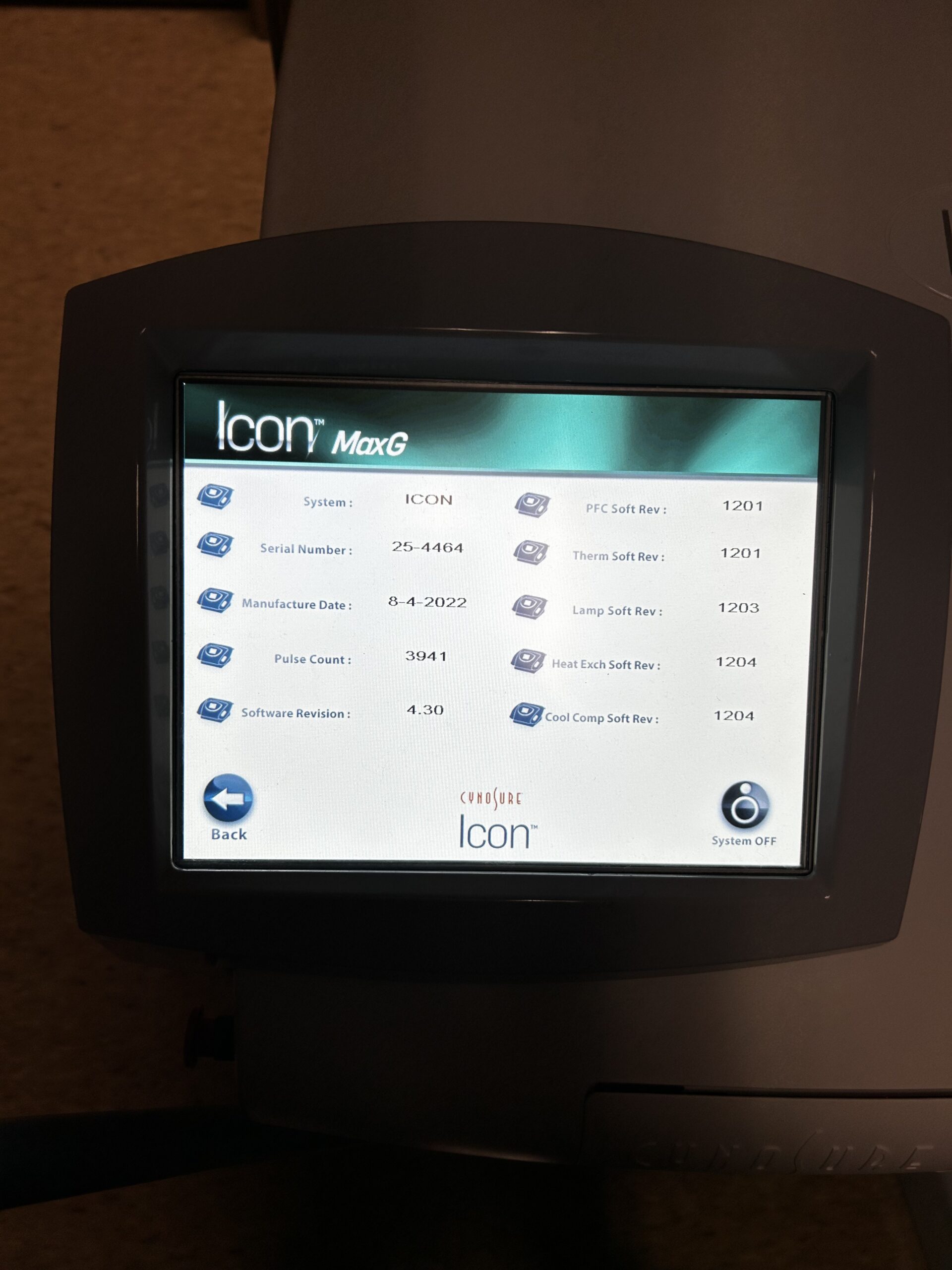

• Intuitive User Interface: Enhanced user interface features new treatment tracking technology for more streamlined procedures.
• Calibration: New external calibration for optimal pulsed light performance.
• AccuSpectrumTM: Dual filters minimize unnecessary epidermal exposure, enhancing client comfort.
• Photon RecyclingTM: Maximizes treatment results by reducing energy loss.
• Smooth PulseTM: Proprietary light delivery system that allows for the usage of greater amounts of energy.
• Maximum effective energy is defined as the spot size x maximum fluence as measured in joules.

MaxG
Optimized light technology for superior clearance of vascular and pigmented lesions that goes beyond single-wavelength lasers. With the unique combination of Dynamic Spectrum ShiftingSM and dual-band filters, the MaxG provides more uniform heating across the entire diameter of the vessel, clearing even the deepest facial vessels.

1540 Fractional
Fractional, non-ablative laser for skin resurfacing and the treatment of surgical scars, acne scars and stretch marks – the only FDA cleared laser for this treatment. The various Microlenses allow for customized treatments; the XF Microlens for high speed, quick treatment sessions or the XD Microlens for deeper penetration to reach tough conditions such as scars and stretch marks.

MaxYs
Optimized light technology for the treatment of unwanted pigmented lesions  ideal for the chest, arms and hands. The high peak power allows the removal of difficult to treat finer and lighter hair.

2940 Fractional
Fractional, ablative laser for the (Wrinkle. This one-time treatment provides dramatic results with fast recovery and minimal downtime.

Lux 1064
Comfortably clears a variety of leg vessels, from the smaller red vessels to the larger blue reticular leg veins. This handpiece can also be used for laser hair removal on darker skin types.

MaxR
Optimized light technology for permanent hair reduction on all skin types, including tanned skin. The large spot size quickly covers larger areas such as the back, legs, and chest.

MaxRs
Optimized light technology for permanent hair reduction on all skin types, including tanned skin. The small spot size is perfect for smaller areas such as the face, underams, and bikini line.

MaxIR
The Palomar MaxIR handpiece is an infrared handpiece that is designed for deep tissue coagulation. The MaxIR can be used on areas such as the legs, neck and abdomen.
Skin Tightening, Non-Ablative Skin Rejuvenation, Body Contouring. Infrared heating on areas such as the neck, abdomen, and legs, and soft tissue coagulation.

SPECIFICATIONS

Palomar Icon

• Voltage: 90-264 VAC, 50/60 Hz (20 amp circuit required)
• Max Power: 1600 VA
• Repetition Rate: 0.2 – 6 Hz
• Dimensions: 23″W x 22″D x 41”H
• Weight: 135 lbs

Handieces

MaxG

• Spot Size: 10 x 15 mm
• Cut Off Filter: 500 & 870 nm
• Fluence: Up to 80 J/cm2

Max Ys

• Spot Size: 12 x 28 mm
• Cut Off Filter: 525 nm
• Fluence: Up to 90 J/cm2

Max R

• Spot Size: 16 x 46 mm
• Cut Off Filter: 650 nm
• Fluence: Up to 48 J/cm2

Max Rs

• Spot Size: 12 x 28 mm
• Cut Off Filter: 650 nm
• Fluence: Up to 72 J/cm2

Lux 1540

• Spot Size: 12 & 15 mm
• Cut Off Filter: Er-Glass
• Wavelength: 1540 nm
• Pulsewidth: 10 & 15 ms

Fractional 2940

• Spot Size: 6 & 10 mm
• Cut Off Filter: Er-YAG
• Wavelength: 2940 nm
• Pulsewidth: 0.25, 3 7 5 ms

Lux 1064

• Spot Size: 1.5,3,6 &10 mm
• Cut Off Filter: Nd-YAG
• Wavelength: 1064 nm
• Pulsewidth: 10-100 ms

MaxIR

• Wavelength: 850-1350 nm
• Pulse Length: 2.5-10 sec.
• Energy: Up to 154 Joules
