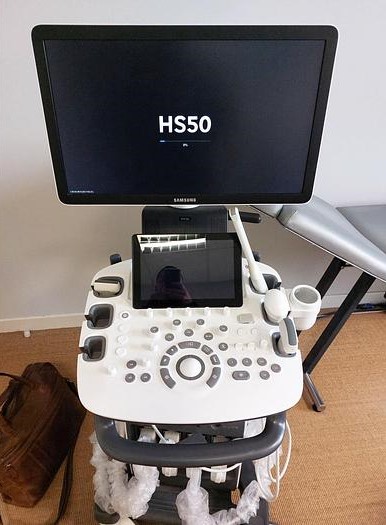

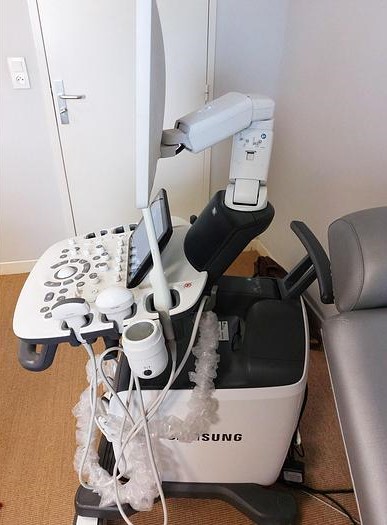

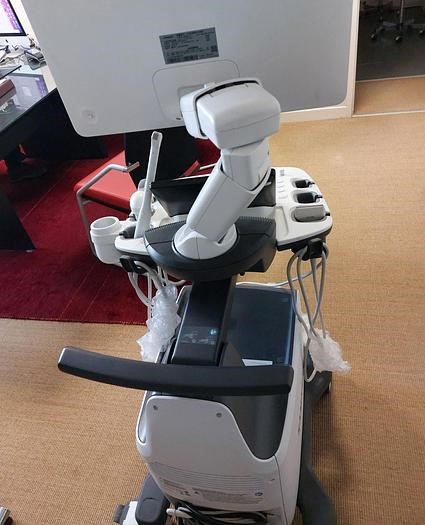

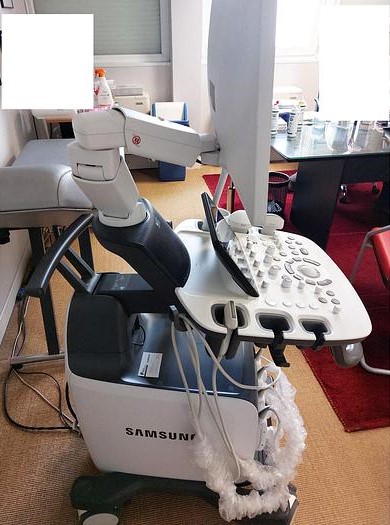

SAMSUNG HS50
The Samsung HS50 Ultrasound Machine is a midrange multi-purpose diagnostic ultrasound system designed to cover a wide range of applications including obstetrics, abdominal, gynecology, pediatric, small organs, neonatal cephalic, adult cephalic, trans-rectal, trans-vaginal, MSK (conventional, superficial), urology, adult cardiac, pediatric cardiac, and peripheral vessel.
The Samsung HS50 integrates a 128-channel S-Vision Imaging Engine from the HS70A which provides support for a number of high performance hardware such as a 21.5″ LED monitor, a fully customizable 10.1″ LED touchscreen, 3 active probe ports (with a 4th as an option), 3 premium single crystal transducers (CA1-7ADm, CA2-9AD, CV1-8AD), and 2 broad bandwidth linear array transducers (LA3-14AD, LA3-16A). These transducers effectively cover a wide array of clinical requirements, thanks to their low to high bandwidth frequency coverage.
Realistic Vue is Samsung’s leading 3D/4D technology on the market, and is an outstanding fetal-maternal bonding tool similar to GE’s HDlive. The HS50 also supports the unique and automated 5D NT and 5D Follicle features along with XI STIC and 3D XI. These technologies will help enhance the physician’s diagnostic confidence during pre-gestation to pregnancy stages.
Review:
The Samsung HS50 Ultrasound Machine has a few more features and transducers; but they both essentially look the same, and have the same imaging and ergonomic tools. Its General Imaging and 3D/4D options for Obstetrics and Gynecology are slightly better than those of the GE Logiq P9 and are similar to those of the GE Voluson P8.
With its recently upgraded “S-Vision system architecture”, the Samsung HS50 becomes quieter, sleeker, and lighter. Touch customization combined with Samsung’s user interface options greatly increase work efficiency and reduce the unnecessary workload from repeated operations and actions. These interface options include Quick Preset, EZ-Exam+, EZ Compare, Measure Navigation, and Quick Scan.
| SPECIFICATIONS | |
| Digital Beamformer | |
| Displayed imaging depth | 0 – 38 cm (probe dependent) |
| Minimum depth of field | 0 – 2 cm (probe dependent) |
| Maximum depth of field | 0 – 38 cm (probe dependent) |
| Continuous dynamic receive focus/continuous dynamic receive aperture | |
| Adjustable dynamic range from 30 to 256 dB | |
| Electrical Power | |
| Voltage | 100 – 240 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 800 VA with Peripherals |
| Dimensions and Weight | |
| Height | 1,335 ~ 1,710 mm |
| Width | 530 mm |
| Depth | 750 mm |
| Weight with monitor | 79.84 kg ( 176lb.) |
