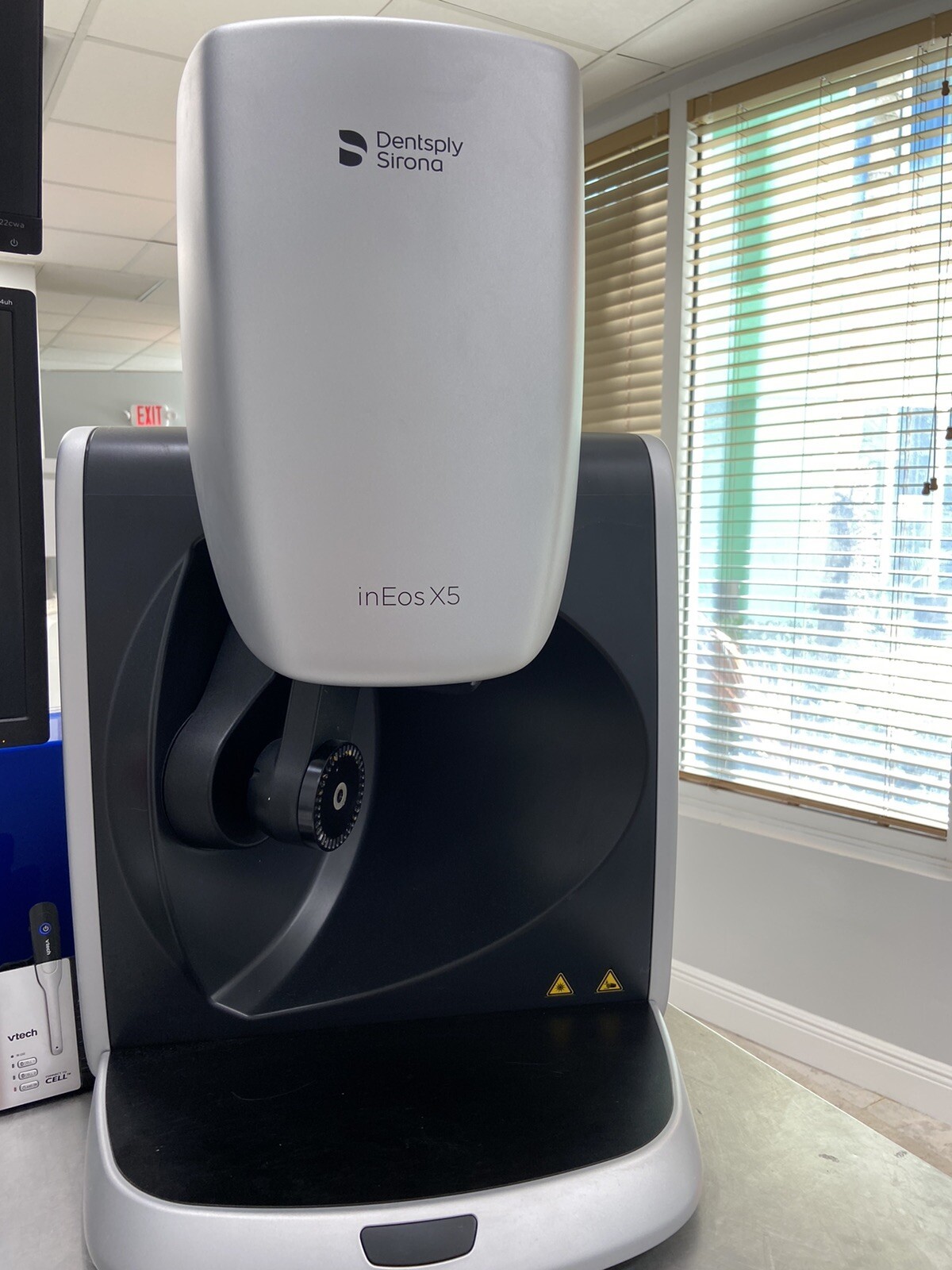

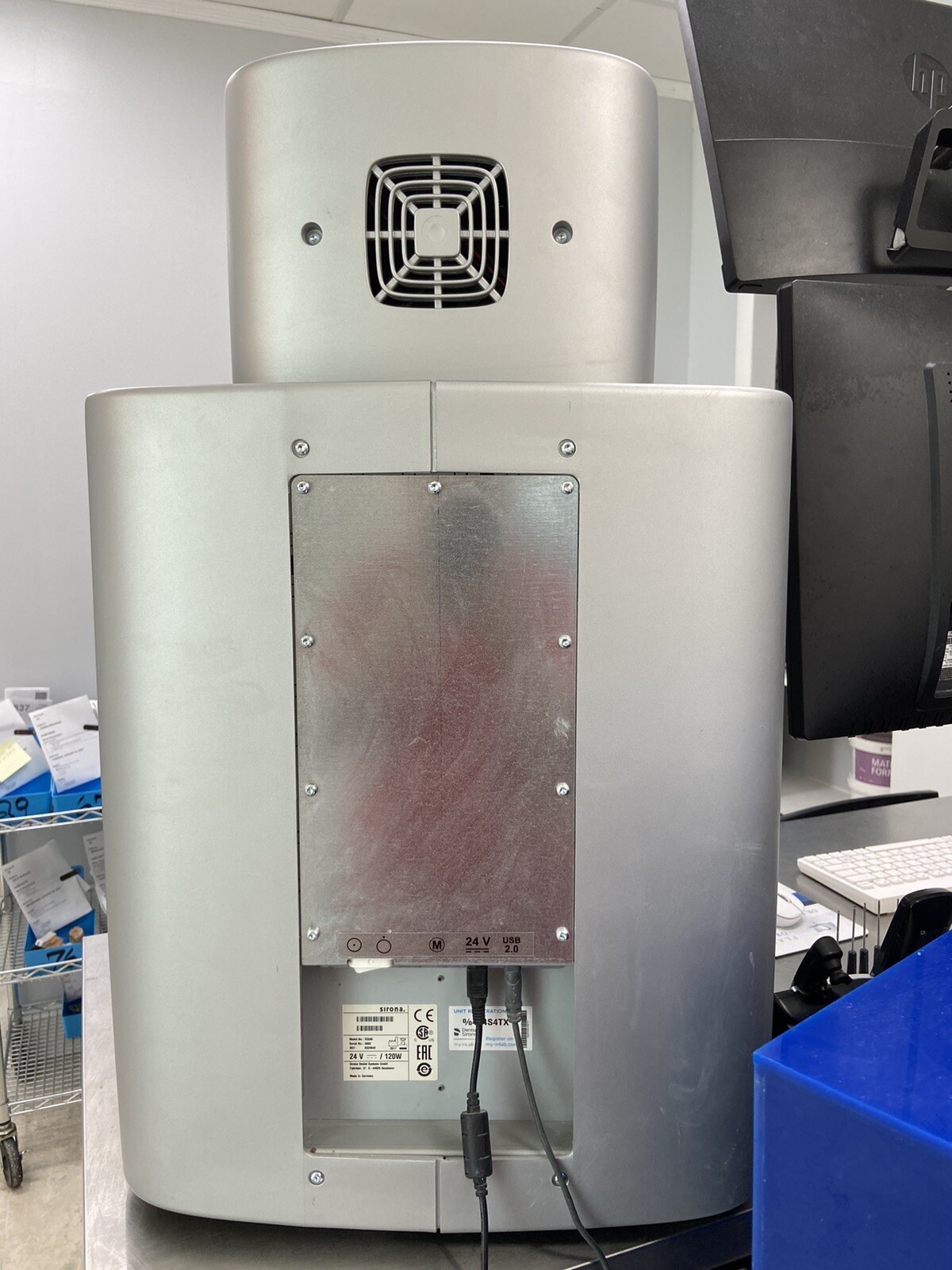

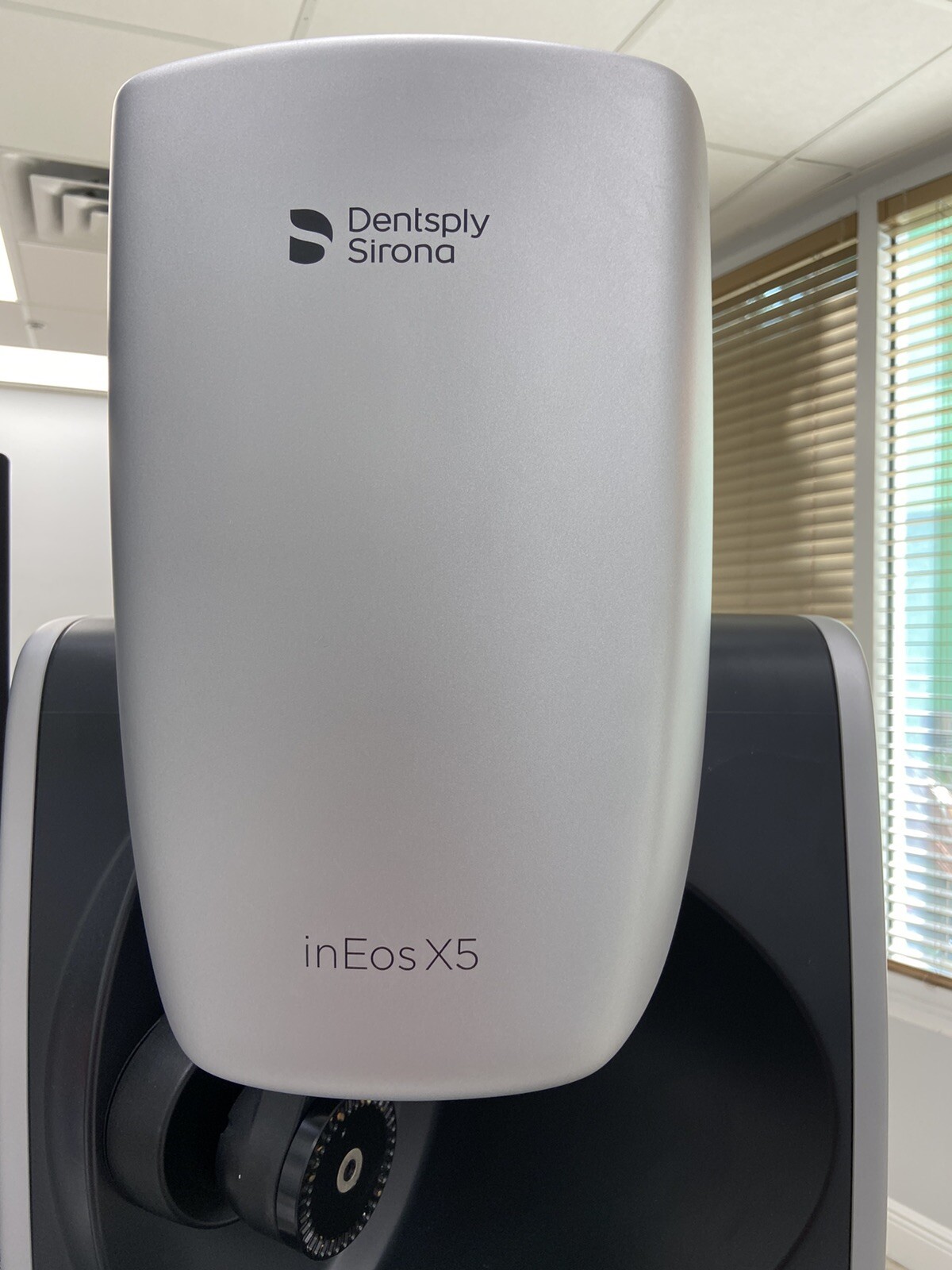

inEos X5
Dentsply Sirona inEos X5 Dental Lab Scanner was developed according to the highest quality standards for optical measuring systems. It has quickly become established on the market as the reference scanner. The inEos X5 ensures greatest accuracy for all digitisation work of interest to the dental technician.
Features
3D scanning of models, impressions and complete jaws
Capture modes: automatic, free, stump scanning, scanbodys
HDR mode for managing contrasts and complex materials
Automatic focus
Start button or optional foot pedal control
Compatible with inLab software for a guided workflow
Simple connection via USB to an inLab PC

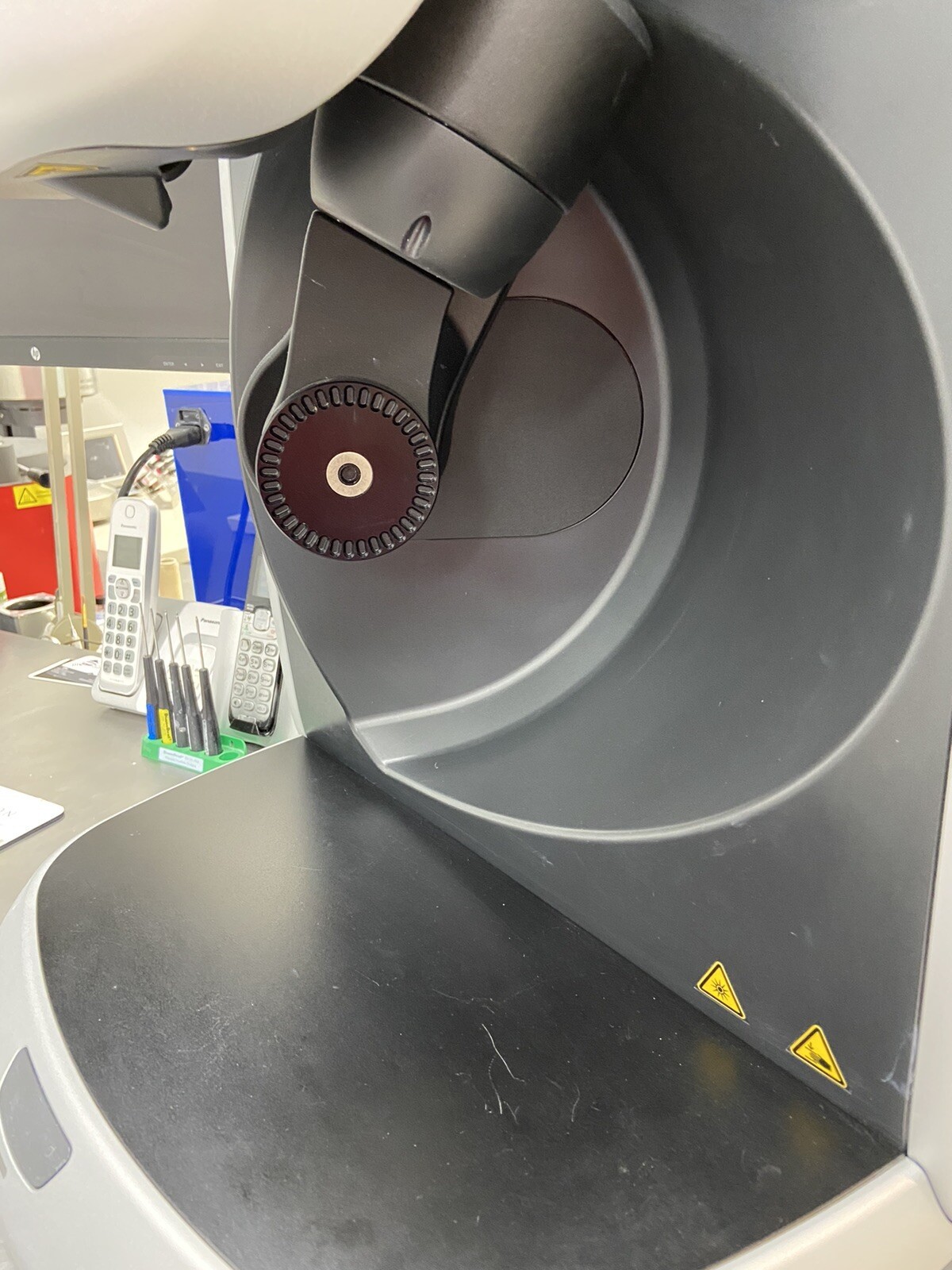

Motorised articulated arm with collision protection
Ergonomic Design, Safety
Designed for tabletop use, the inEos X5 requires little space and fits easily into a laboratory environment. Its motorised articulated arm is equipped with anti-collision safety devices, and its structure complies with electrical safety standard EN 61010-1 and electromagnetic compatibility standard EN 61326-1. The device is CE marked and complies with the requirements of the Machinery Directive and Regulation (EU) 2017/745 for medical devices. Its design allows for continuous use with intermittent loading while maintaining measurement accuracy.
Proven Accuracy
The accuracy of the results of the inEos X5 with inLab CAD SW 16 was verified according to DIN EN ISO 12836.2015. The demonstrated accuracy on standard “bridge” test specimens was at 2.1 ± 2.8 μm, and on standard “inlay” test specimens, 1.3 ± 0.4 μm.
Intelligent scanning technology
Unique 5-axis scanning technology and large working area with its robot arm
Comfortable
The large operating range allows positioning of most common articulators and gives fast, unobstructed access to the scan object.
Open
STL data export for a free choice of design and production components
Intuitive interface
Clear software interface and intuitive operation result in digital models with just a few clicks
Flexible
With flexible positioning of impressions, singular or articulated models, inEos X5 guarantees the greatest possible freedom for dental applications.
