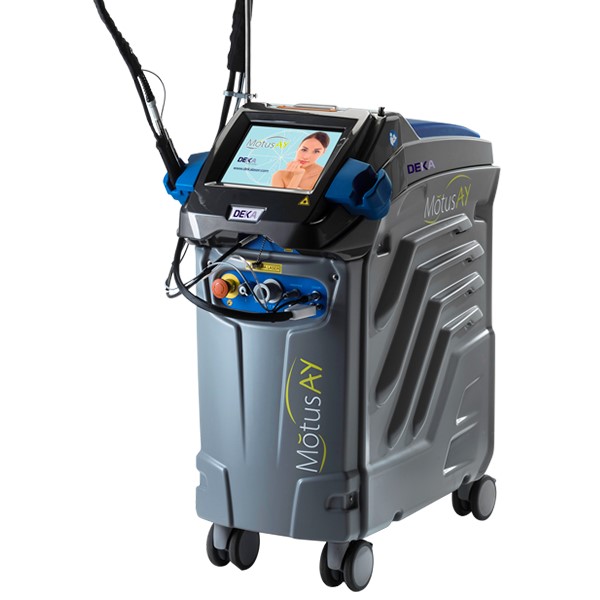

MOTUS AY
DEKA Motus AY Dual is the new system which combines Alexandrite with Nd:YAG laser sources covering all applications in dermatology. A Jump into the Future of Hair Removal and Vascular Treatments for all Skin Types. Motus AY is the new system which combines Alexandrite with Nd:YAG laser sources covering all applications in dermatology. The machine Especially recommended for Hair Removal, Vascular Lesions, Benign Pigmented Lesions, Anti-Aging.
Motus AY Dual Nd YAG Alex Laser Hair Removal Vascular is the new system that DEKA has developed to complete the Motus AX Alexandrite laser. A system without rivals, with all the benefits and no disadvantages of Alexandrite laser, now equipped with a Nd:YAG laser source too:
- The Alex wavelength is the only one which is effective when treating fine and light hair. No other type of laser is able to combine an efficient melanin absorption (at 755 nm), a high peak power (more than 6,000 W) and the possibility of selecting a short pulse length (up to 2 ms).
- The Nd:YAG source at 1,064 nm completes the system adding a wavelength which penetrates deep inside the skin to be effective in vascular treatment, not only for the face but also for legs where vessels are more difficult to be reached.
- The Moveo handpiece (available for both Alex and Nd:YAG) allows unwanted hair to be removed by means of a new method that is easier, faster, safer, painless and more effective.
- An innovative technology structurally simplifies the heart of the laser system, reducing costs and maintenance problems.
A compact, portable system with a surprisingly low cost!
Double Sources System: Broadening the Range of Possible Treatments
- Alex (755 nm)
The only effective in treating fine and fair hair. - Nd:YAG (1064 nm)
It penetrates deeper into the skin to be effective in vascular treatment (both face and legs).
Moveo Handpiece- Available for both Alex and Nd:YAG
The new handpiece technology integrates a sapphire tip that comes into contact with the skin, reducing the reflected energy loss. The new hair removal method consists of repeated passes on skin treated areas that cause gradual heating of the vital parts of hair.
Inside Moveo Innovation
Moveo handpiece
drastically reduces the amount of energy reflected by the skin by working in contact with the skin at lower fluence. This exclusive technology is available for 3 applications.
Moveo HR: Focus on Hair Removal
The multiple passes of Moveo HR over small defined areas cause gradual heating and destruction of unwanted hair.
Moveo PL: Focus on Pigmented Lesions
The new MOVEO PL is indicated for skin age and sun spots progressively heating the pigmented lesions.
Moveo SR: Focus on Skin Rejuvenation
The multipass controlled action of MOVEO SR causes a progressive increase in heat at dermal level, which stimulates a neocollagenic process.
Moveo VL: Focus on Vascular Lesions
The specific action of Moveo VL acts directly and effectively on vascular redness.
| SPECIFICATIONS | ||
| Laser Type | Alexandrite | Nd:YAG |
| Wavelength | 755 nm | 1064 nm |
| Energy per Pulse | 31 J (max.) | 63 J (max.) |
| Laser Power | 62 W (max.) | 94 W (max.) |
| Number of Pulses | 1,2 | 1,2,3 |
| Pulse Duration | From 2 to 50 ms (single pulse) From 4 to 80 ms (twin pulse) |
From 0.2 to 50 ms (single pulse) From 0.4 to 50 ms (twin pulse) |
| Total Pulse Length | From 2 to 300 ms | From 0.2 to 300 ms |
| Repetition Rate | From 1 to 10 Hz | From 0.3 to 10 Hz |
| Spot Sizes (optional) | 2.5 mm, 5 mm, 7 mm, 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm; Moveo handpiece | |
| Fluence | Up to 200 J/cm2 | |
| Aiming Beam | Green Diode Laser @ 532 nm – <4 mW | |
| Emission Control | Fingerswitch or footswitch | |
| Laser Handpiece Cooling | Integrated Skin Cooler | |
| Dimensions and Weight | Dimensions 95 (H) cm x 51 (W) cm x 83 (D) cm; 90 Kg | |
| Electrical Requirements | 230 Vac – single phase – 50/60 Hz – 16 A | |
