INMODE VOTIVA
WHAT IS VOTIVA?
A growing segment of practices are looking to provide the complete mommy makeover. This new concept is best addressed with a Votiva workstation that promotes overall womens health and wellness, allowing for a broader range of feminine concerns to be solved.
KEY BENEFITS
Votivas innovative procedures can expand your practice to:
- Become part of a growing segment of womens health and wellness
- Attract a broader patient base
- Offer an innovative and versatile solution for your patients
- Benefit from additional revenue streams above managed care

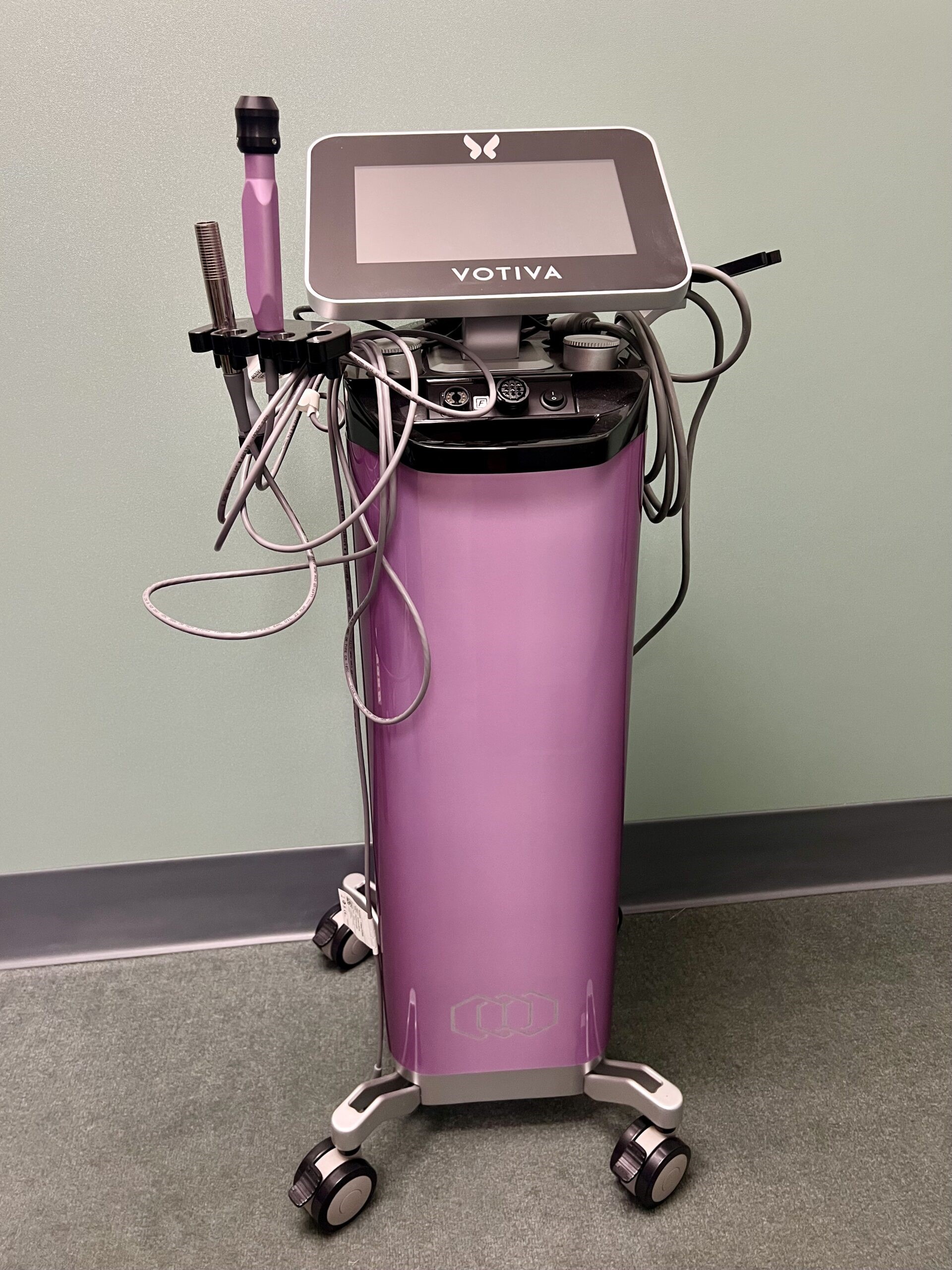

TECHNOLOGIES ON THE WORKSTATION
FormaV helps patients receive temporary improvements in blood circulation, muscle relief pain and muscle relaxation. FormaV is a therapeutic device for the treatment of sexual dysfunction or as an adjunct to Kegel exercises (tightening of the muscles of the pelvic floor to increase muscle tone).
Additional Applicator Available for “Add-On”
FRACTORA
Radio Frequency MicroNeedling.
Fractora is a fractional skin resurfacing and subdermal tissue coagulation device that bridges the gap between fractional lasers and surgical procedures. Clinical papers demonstrate outcomes such as: improvement in skin complexion, reduction in skin irregularities and restoring skin to a more youthful appearance. This all occurs within one session or multiple sessions, depending on patient preference. Fractora can be used on active cystic acne and acne scars.
Addresses multiple problems, including treatment of wrinkles with fractional coagulation and ablation.
- Significant resolution of cystic acne and scars (improving acne scarring by 50%).
- Safe on skin type VI with little risk of post inflammatory hyperpigmentation (PIH) which is common with other resurfacing methods.
- Combination of fractional coagulation and volumetric heating through tips with various depths and pin density configurations.
- High efficiency of vascular and pigmented lesions due to high peak power and optimized output.
- Complete photo rejuvenation in 1 or 2 treatments versus 4-6 treatments with standard IPLs.
- Reduces treatment time thanks to large spot size and high pulse repetition rate.
- Strong sapphire cooling tip results in painless procedure.
- Fast pulse repetition rate at all settings. Highest peak power 3300W*

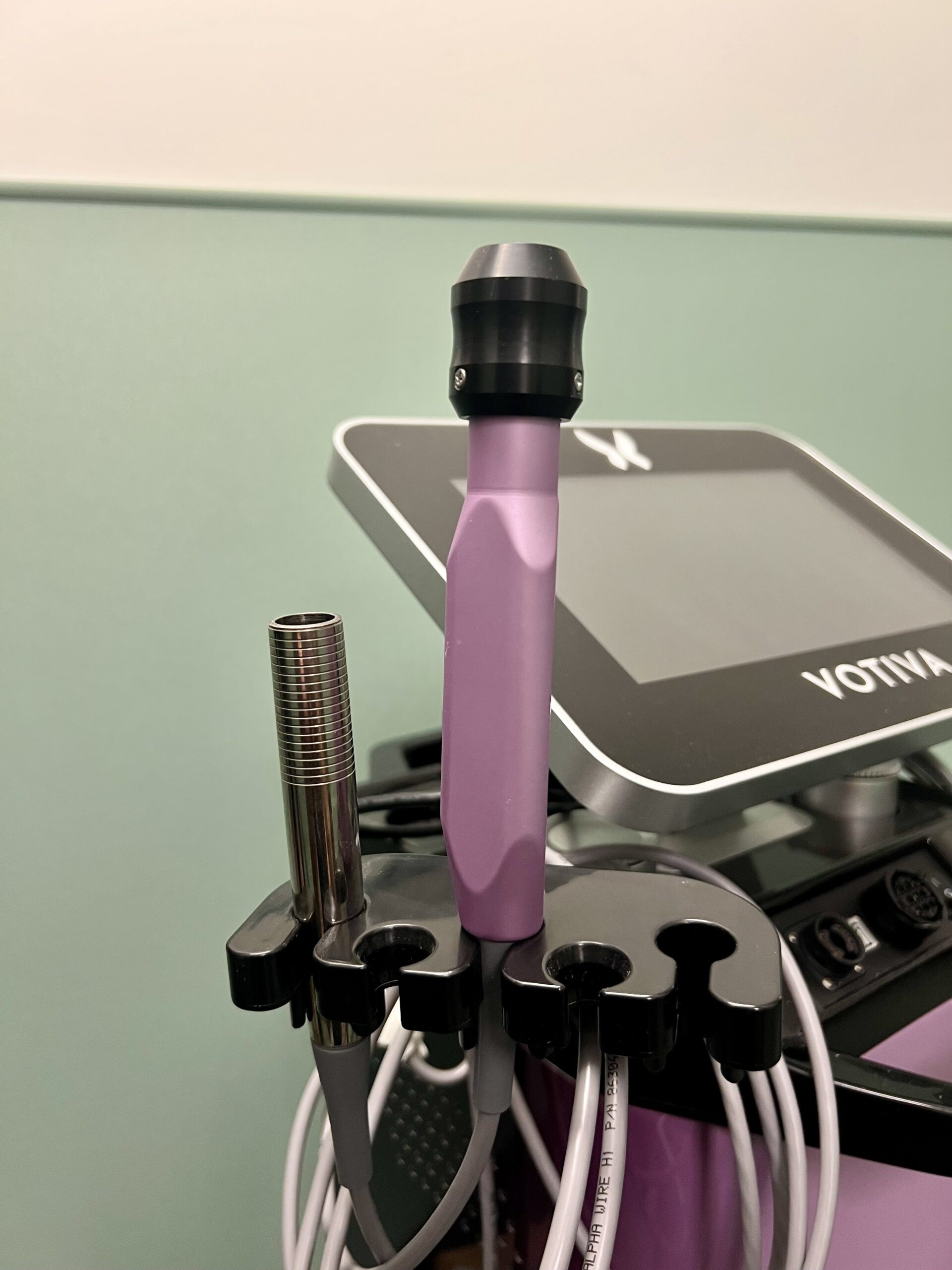

MORPHEUS8 MicroNeedling – Face Handpiece:
- Type: Deep and Subdermal Fractional Radio Frequency
- Pin Length: 4000
- Ablation Depth: 5mm +
- Max Energy: 62 mJ/pin at 75 W
- Frequency: 1 MHz
- Repetition Rate: Up to 2 pps
Tips Available:
- 12 pin Prime Mopheus8 for small narrow areas such as the periorbital zone and upper lip
- 24 pin Morpheus8 for larger facial areas such as the forehead, nasolabial folds, jawlines, and neck, as well as the body for skin tightening and wrinkle reduction
- 24 pin Resurfacing Morpheus8 for the treatment of superficial conditions, including scarring
Morpheus8 Face Handpiece KEY BENEFITS:
- For facial soft tissue and small hard-to-reach treatment areas.
- Delivers fractional resurfacing and subdermal treatments, penetrating tissue up to 5mm (4mm + 1mm thermal profile) to stimulate collagen production.
- Clinically proven to remodel subdermal and dermal tissue through fractional coagulation of fat and bulk sub-necrotic heating.
- Three interchangeable fractional tips with different microneedle configurations:
- 12 pin Mopheus8 Prime for small narrow areas such as the periorbital zone and upper lip
- 24 pin Morpheus8 for larger facial areas such as the forehead, nasolabial folds, jawlines, and neck, as well as the body for skin tightening and wrinkle reduction
- 24 pin Morpheus8 Resurfacing for the treatment of superficial conditions, including scarring
- Safe on skin types up to and including VI with little risk of post inflammatory hyperpigmentation (PIH) which is common with other resurfacing methods.
- Extremely uniform effect
- Little to no thermal damage to dermis
- Safe on skin type VI with little risk of post inflammatory hyperpigmentation (PIH) which is common with other resurfacing methods.
SPECIFICATIONS
Input Power
Laser Type: Radio Frequency
Main Line Frequency (nominal): 50-60 Hz
Input Voltage (nominal): 100-240 VAC
Input Current(rms): 2A
Operating Parameters
Ambient Temperature Range: 15 – 30 degrees C[59 – 86 degrees F]
Relative Humidity: 30% to 80%, non-condensing
Atmospheric Pressure: 90-110 kPa
Warm-up Time: If transported or stored at room temperatures outside the operating temperature range, allow one hour for the device to reach room temperature before use.
RF Maximum Output energy: 40[energy levels]
RF Frequency: 1[MHz] + or – 2%
FormaV Vaginal Treatment Zone: 10-20 cm2
RF Energy Level: 20-30
Cut-Off Temperature: As High as Tolerable Starting at 40 Degrees Celsius
Transport and Storage
Ambient Temperature Range: -20 – 65 degrees C[-4 – 149 degrees F]
Relative Humidity:0% to 80%, non-condensing
Atmospheric Pressure:50 to 110 kPa
Dimensions
System: 35cm W x 35cm D x 100cm H [18.2″ W x 18.2″ D x 40″ H]
Handpiece cable: 250 CM L [100″ L]
Weight
System: 35cm W x 35cm D x 100cm H [18.2″ W x 18.2″ D x 40″ H]
FormaV Applicator: 0.22 Kg [0.5 lbs.]
FractoraV Applicator: 0.22 Kg [0.55 lbs.]
Additional “Add-On” Applicator Available:

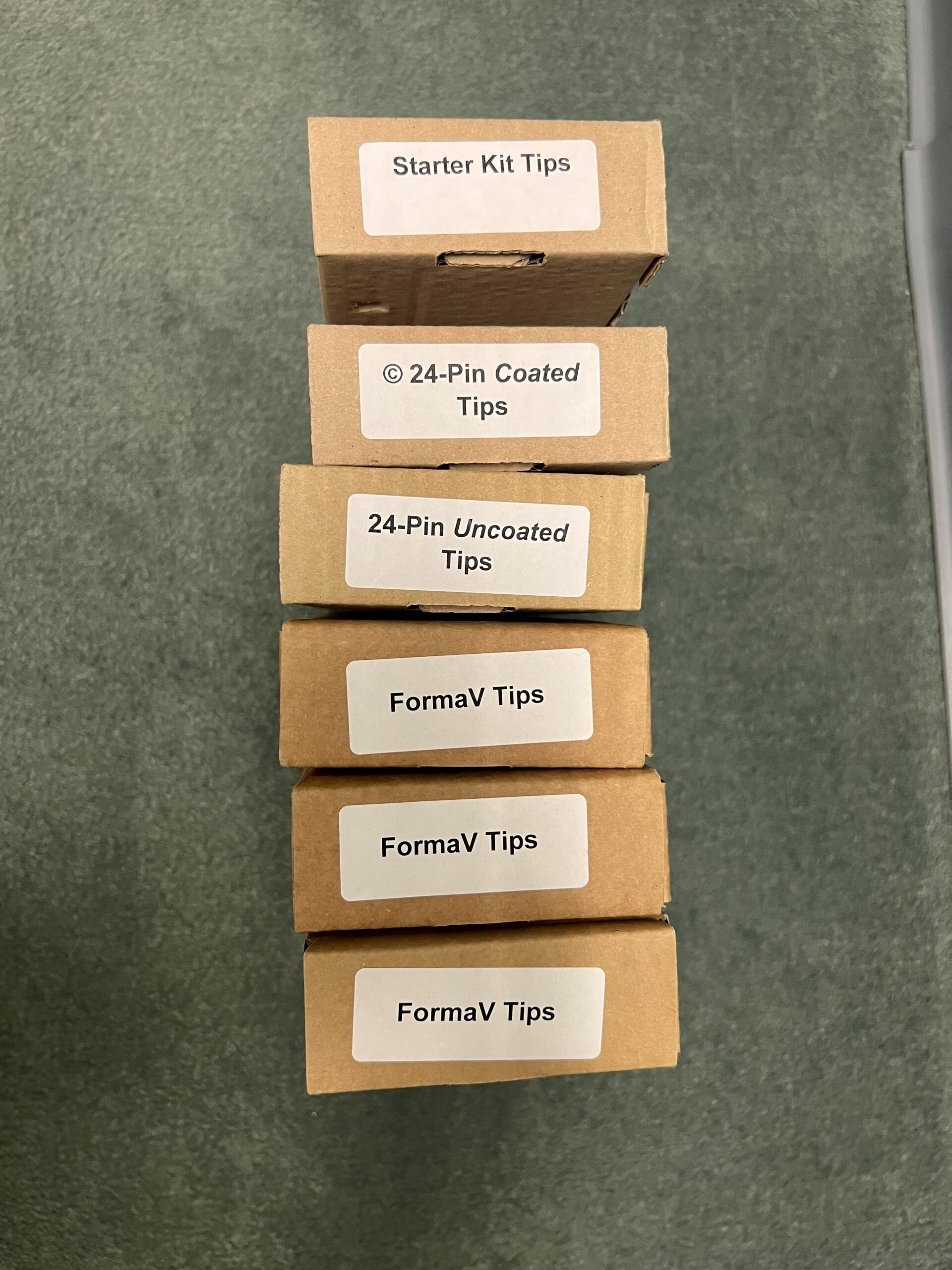

FRACTORA Microneedling Tips
24 Pin:Type – Full Thickness Dermal; Configuration – 6×4; Pin Length – 3000u; Ablation Depth – 3 mm; Heating Depth – Between 3-5 mm; Max Output Energy 62 mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2 pps
24 Pin Coated:Type – Deep and Subdermal; Configuration – 6 x 4 Coated; Pin Length – 3000 u, Ablation Depth – 3 plus mm; Heating Depth – Between 3-5 mm; Max Output Energy 62 mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2 pps
60 Pin:Type – Mid Dermal; Configuration – 10×6; Pin Length – 600u; Ablation Depth – 0.6-1 mm; Heating Depth – Between 3-5mm; Max Output Energy 62 mj/pin; Output Frequency – 1 MHz; Repetition Rate – Up to 2 pps
