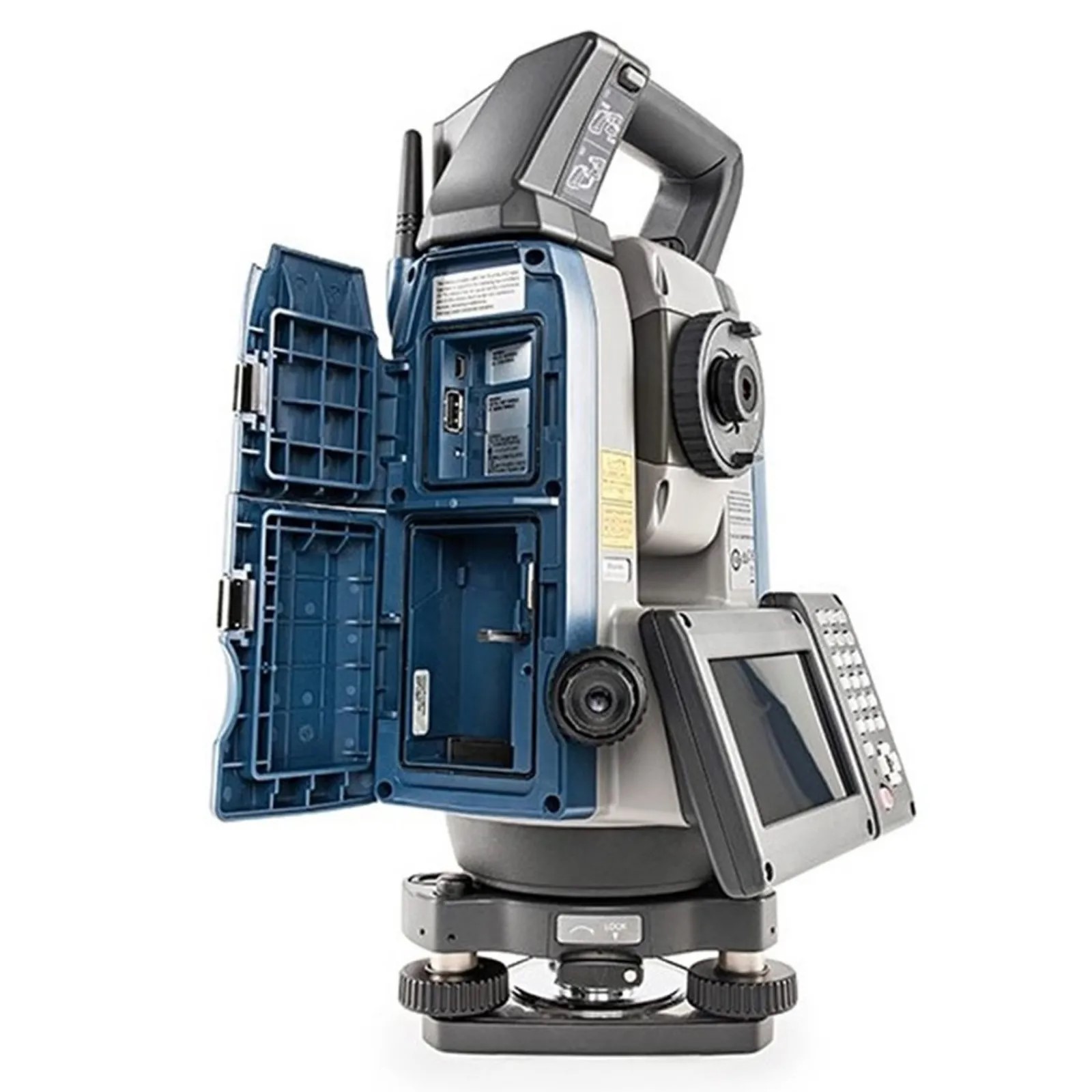

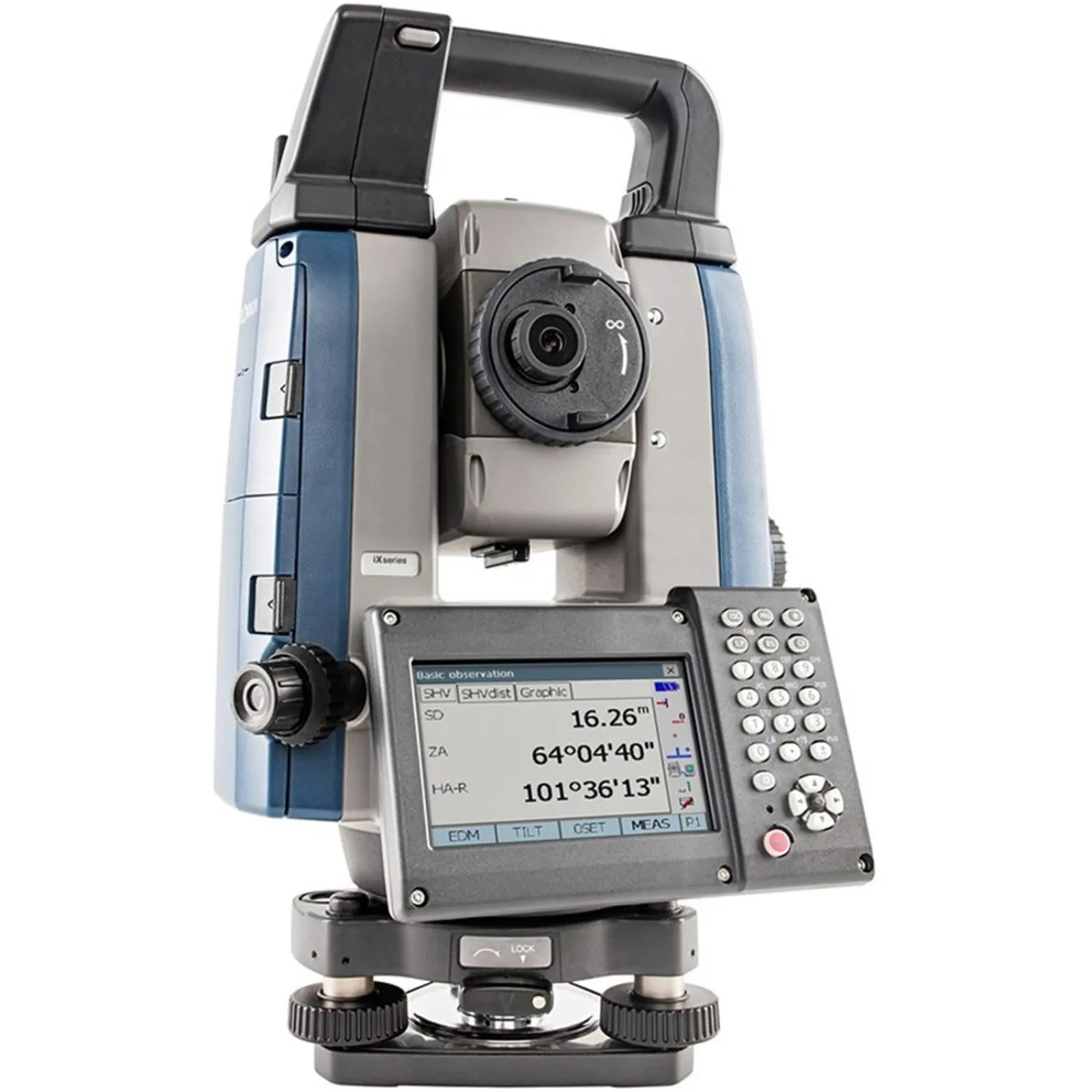

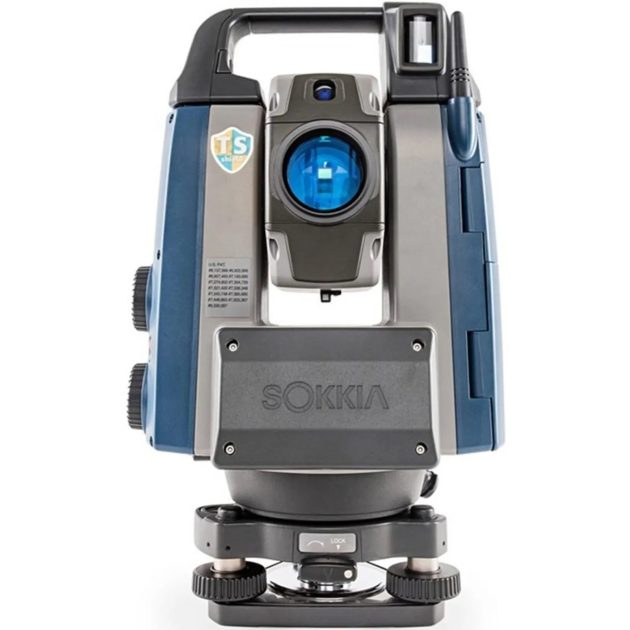

Sokkia iX-502 2″ Robotic Total Station
$10,000
In stock
Includes:
• Sokkia iX-500 Series Robotic Total Station
• Battery BDC70
• Adjusting pin
• Carrying strap
• Charger CDC68
• Power cable
• Stylus pen
• Lens cap
• Lens hood
• Tool pouch
• Screwdriver
• Lens brush
• Hexagon wrench
• Silicon cloth
• Startup guide
• USB flash drive
• Serial card
• Laser caution sign-board
• Carrying case
• Export restrictions card
• Registration manual
• Registration card
• Certification card
• Encryption card
• User manual
SOKKIA IX-502 2″ ROBOTIC TOTAL STATION
Sokkia iX-500 Series Robotic Total Station is an efficient single-operator robotic system with the power of long-range reflectorless measurements. It can measure distances of up to 13,123 feet (4,000m) when using a prism and up to 1,968 feet (600m) in reflectorless mode. With a rotation speed of 85 degrees per second, this robotic total station provides high- performance solution allowing construction professionals the smoothest and most accurate prism-tracking possible.
Outlined with advanced instrument algorithms, the Sokkia iX-500 series delivers the confidence you need without losing line-of-sight in all prism conditions. Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Additionally, it has customizable reporting features with intuitive processing within Magnet Office Tools.
This Sokkia robotic total station is has a user-friendly interface with a 4.3-inch color touchscreen display. Without traditional gears or wearing parts, the UltraSonic motors of the iX-500 are much more rugged and durable with an IP65 water-resistant and dustproof rating. Its battery lasts up to four times longer than previous total stations and is backed up by a five-year warranty.
Sokkia iX-502 2″ Robotic Total Station
| General Spesification | |
| Weight | 10.58 lbs (4.8 kg) |
| Warranty | 5-year |
| Protection Class | IP65 (dust proof and water jets resistant) |
| Angle Measurement | |
| Accuracy | Choice of 2-second, 3-second or 5-second |
| Distance Measurement | |
| Unit of Measure (distance display) | Selectable: m/ft/in. |
| EDM Accuracy (Precision) | ±2mm + 2 ppm |
| Tilt Sensor/Compensator | |
| Range | ±6 feet |
| Type | Liquid 2-axis tilt sensor |
| Battery/Power | |
| Power Source | Battery |
| Battery Life | Up to 4 hours |
| Battery Life Alert | Yes |
| Optical Plummet | |
| Magnification | 30x |
| Telescope | |
| Magnification | 30x |
| Reflectorless | Yes |
| Display and Keypad | |
| Type | Color touch LCD |
| Keys | 24 keys with illuminator |
| Touchscreen | Yes |
| Backlight | Yes |
| Temperature | |
| Operating | -4Fº~122ºF (-20ºC~50ºC) |
| Applications | |
| Surveying and Construction | Yes |
| Mapping and GIS (geographic information systems) | Yes |
| Utilities | Yes |
| Environment Studies | Yes |
| Geomarking | Yes |
| Archaeology | Yes |
| Accident Reconstruction | Yes |
| Measurement Range (under fair weather conditions) | |
| Single Prism | 13,123 ft (4,000 m) |
| No Prism | 1,968 ft (600 m) |
| Functions | |
| Coordinate Measurement Point | Yes |
| Angle and Distance Stake Out | Yes |
| Interface | |
| Bluetooth | Yes |
| USB | 2.0 (Host + Slave) |
