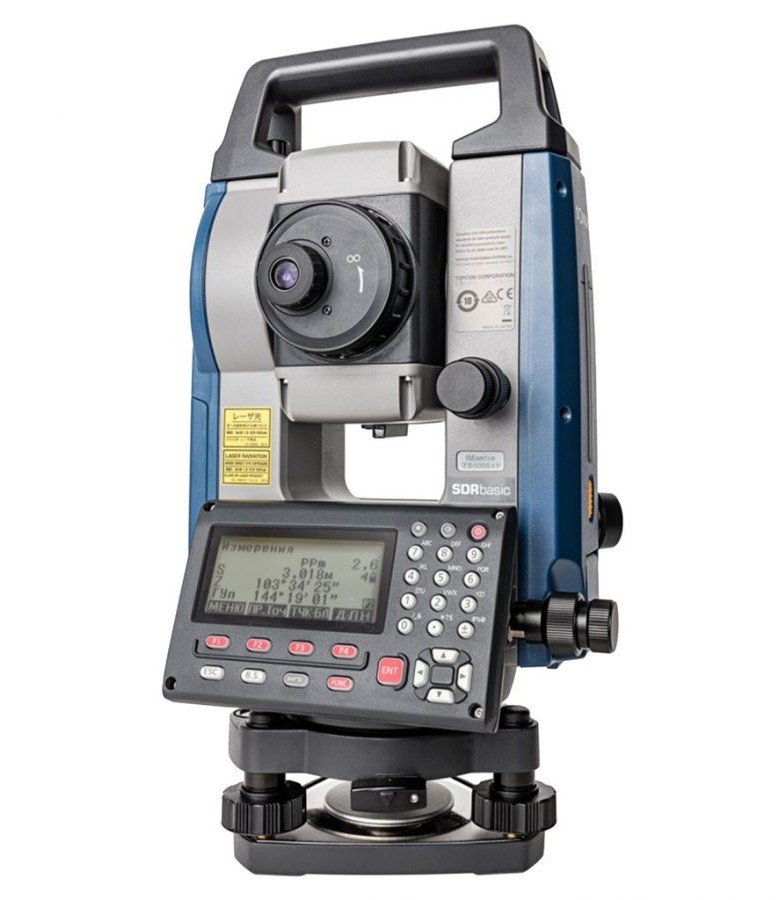

Sokkia iM-105 5″ Total Station

SOKKIA IM-105 5″ TOTAL STATION

With Sokkia IM-105 Total Station you get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 6,000 meter with a prism and up to 1000 meter in reflectorless mode, and a battery life of up to 28 hours. The iM-100 series intelligent measurement station is ready to be your hardest worker out in the field.

The iM-100 (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. It will handle your most demanding survey layout or as-built project needs.

This total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy. It is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.

You get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 5,000 m with a prism and up to 800 m in reflectorless mode, and a battery life of up to 28 hours. The iM-100 is ready to be your hardest worker out in the field. Featuring a coaxial red laser using EDM technology, the Sokkia iM-100 is faster, more accurate and powerful. It is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles. This reflectorless total station comes with a single graphic display for viewing measurements and 50,000 points of internal memory to store large amounts of field data. It also supports an SD flash drive up to 32GB.

Features:

• Fast, accurate and powerful EDM
• Integrated Blueooth technology – no external antenna necessary for connectivity with the controller
• Dual axis compensation
• Waterproof IP66 rating
• Up to 28 hours of battery life in Eco mode

Technical Spesification
