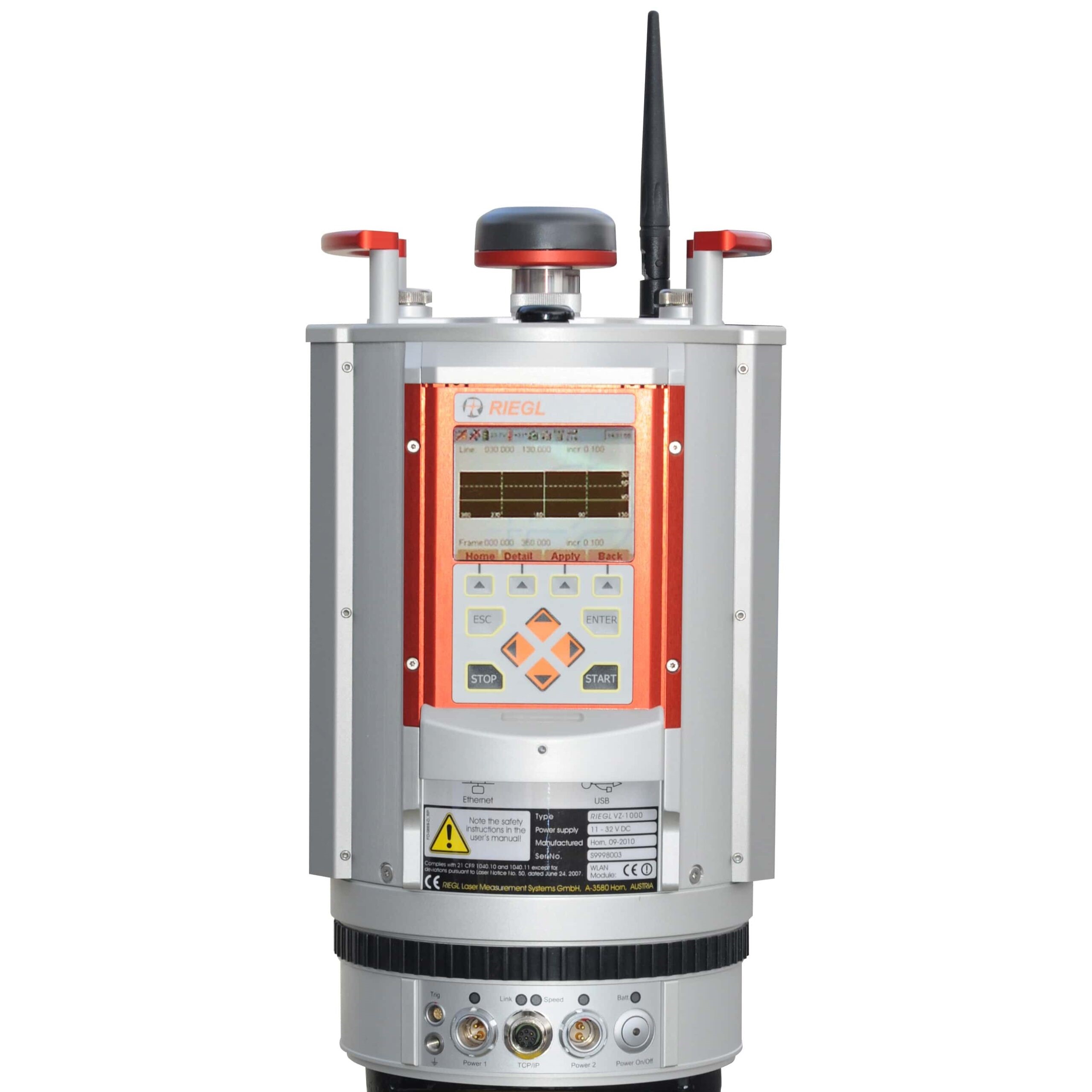

RIEGL VZ-1000 V-Line 3D Terrestrial Laser Scanner
$15,000
In stock
Riegl VZ-1000 laser scanner complete set for sale. Very low scan operation hours (<210 hrs). Comprises all the necessary components for tripod and stop and go laser scanning. A recent manufacturer factory check and re-calibration has also been performed.
RIEGL VZ-1000 V-LINE
RIEGL VZ-1000 V-Line mainly used for mining applications (stockpiles, ROM pads, draglines, open cut pits). Also can used as total-station features for general topo surveys as well (detail surveys on busy roads, powerline pickup + corridors) with very great results
The RIEGL VZ-1000 V-Line 3D Terrestrial Laser Scanner provides high speed, non-contact data acquisition for ranges more than 1400 m using a narrow infrared laser beam and a fast scanning mechanism.
High-accuracy laser ranging is based upon RIEGL’s unique echo digitization and online waveform processing, which allows achieving superior measurement capability even under adverse atmospheric conditions and the evaluation of multiple target echoes. The line scanning mechanism is based upon a fast rotating multi-facet polygonal mirror, which provides fully linear, unidirectional and parallel scan lines.
The RIEGL VZ-1000 is a very compact and lightweight surveying instrument, mountable in any orientation and even under limited space conditions. It can also be mounted on a vehicle for stop and go scanning.
Main Features
- Very long range more than 1400 m
- High speed data acquisition
- Wide field-of-view, controllable while scanning
- High-accuracy, high-precision ranging based on echo digitization and online waveform processing
- Multiple target capability
- Superior measurement capability in adverse atmospheric conditions
- High-precision mounting pads for optional digital camera
- Integrated inclination sensors, laser plummet, and compass
- Integrated GPS receiver with antenna
- Various interfaces (LAN, WLAN, USB 2.0)
- Internal data storage capability
Main Applications
- Topography & Mining
- Archaeology & Cultural Heritage
- As-Built Surveying
- Monitoring
