Olympus OmniScan SX Ultrasonic

OLYMPUS OMNISCAN SX ULTRASONIC

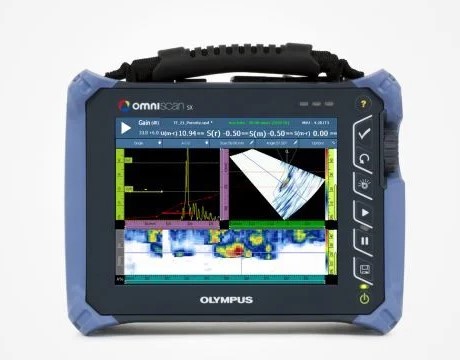

Olympus is proud to introduce the OmniScan SX, a flaw detector that benefits from more than 20 years of phased array experience and shares the OmniScan DNA. For improved ease of use, the OmniScan SX features a new streamlined software interface displayed on an 8.4 in. (21.3 cm) touch screen. A single-group and non-modular instrument, the OmniScan SX is easy to operate and cost-effective for less demanding applications.

The OmniScan SX comes in two models: the SX PA and SX UT. The SX PA is a 16:64PR phased array unit, which, like the UT-only SX UT, is equipped with a conventional UT channel for pulse-echo, pitch-catch or TOFD inspection. Compared to the OmniScan MX2, the SX is 33% lighter and 50% smaller, offering an unprecedented level of portability for an OmniScan.

Setup, Inspection, and Analysis Software Solutions

Compatible with OmniScan SX flaw detector data, these software solutions assist you with setup configuration, automated data analysis, or post-inspection PC-based analysis and reporting.

Phased Array Ultrasonic Testing (PAUT) Beam Simulation Software

Visualize beam simulations and prepare effective inspection setups in advance using NDT SetupBuilder software. Make sure that your OmniScan SX flaw detector has all the tools you need when you head to the job site.

Perform OmniScan SX Data Analysis on a PC

Analyze UT, PA, and TOFD inspection data and generate reports using OmniPC 4 software. Using the PC-based software enables you to deploy the flaw detector in the field while performing analysis on previously acquired data acquired. OmniPC 4 software features the same practical analysis tools and intuitive menus of the onboard OmniScan SX software.

Features:

Cost-efficient, single-group
Two-axis encoding and data archiving capacity
Conventional UT, TOFD, and 16:64PR PA capabilities
8.4 in. (21.3 cm) touch screen with OmniScan interface
Compact, lightweight design
