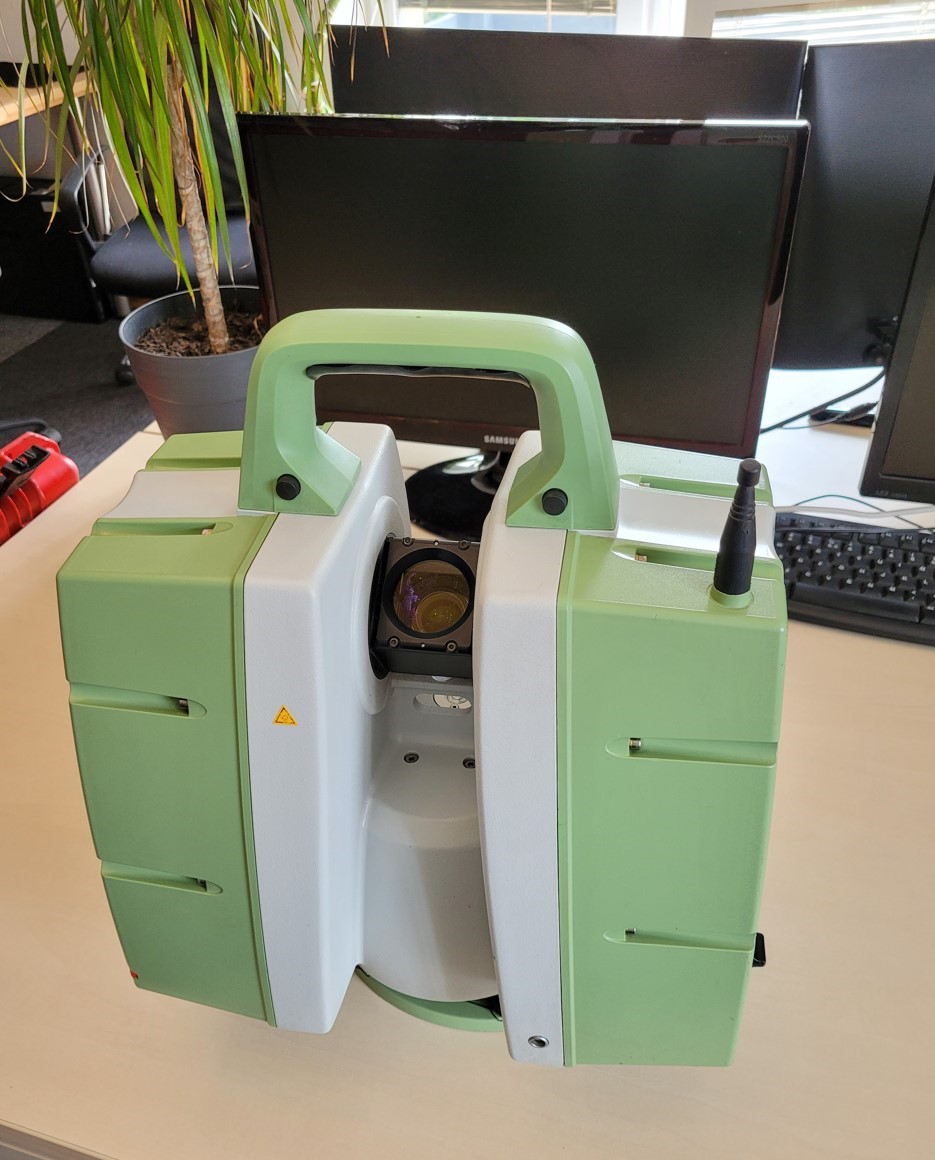

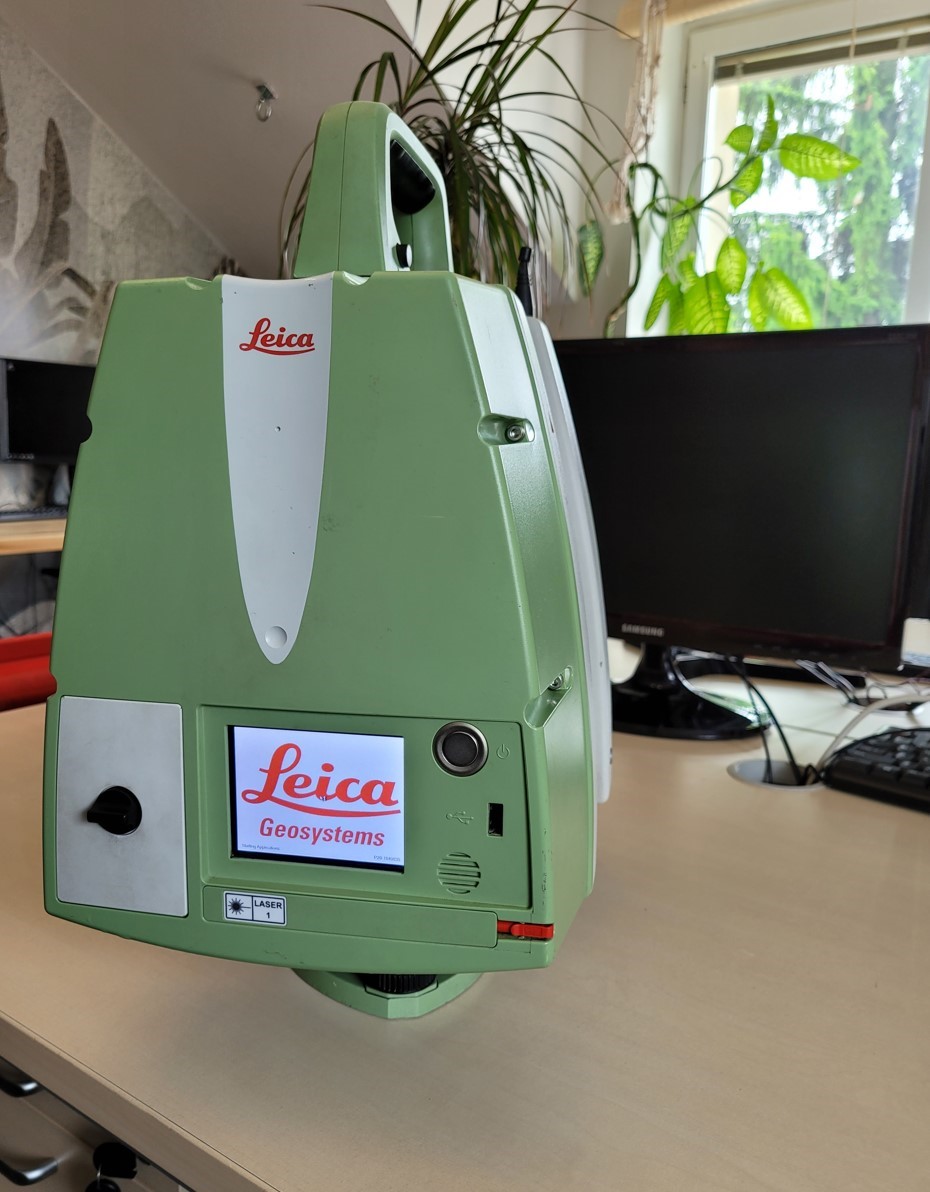

Leica ScanStation P20 Laser Scanner

The Leica ScanStation P20 3D laser scanner has an ultra-high-speed, HD camera with waveform digitizing (WFD) technology. This break-through, compact Leica ScanStation P20 also brings unprecedented data quality at range (120m, max), plus outstanding environmental capabilities, survey-grade tilt compensation, and an industry first “Check & Adjust” capability.

ADDITIONAL INFORMATION

• Features include compact design, pulsed, laser plummet, onboard control, auto-adjusting, high-resolution digital camera with zoom video, touchscreen, dual-axis compensator, vertical rotating mirror on a horizontal rotating base, Ethernet or integrated WLAN communication, touchscreen, IP54 rating, eye-safe laser, valuable “Check & Adjust” capability and high accuracy angular measurement.

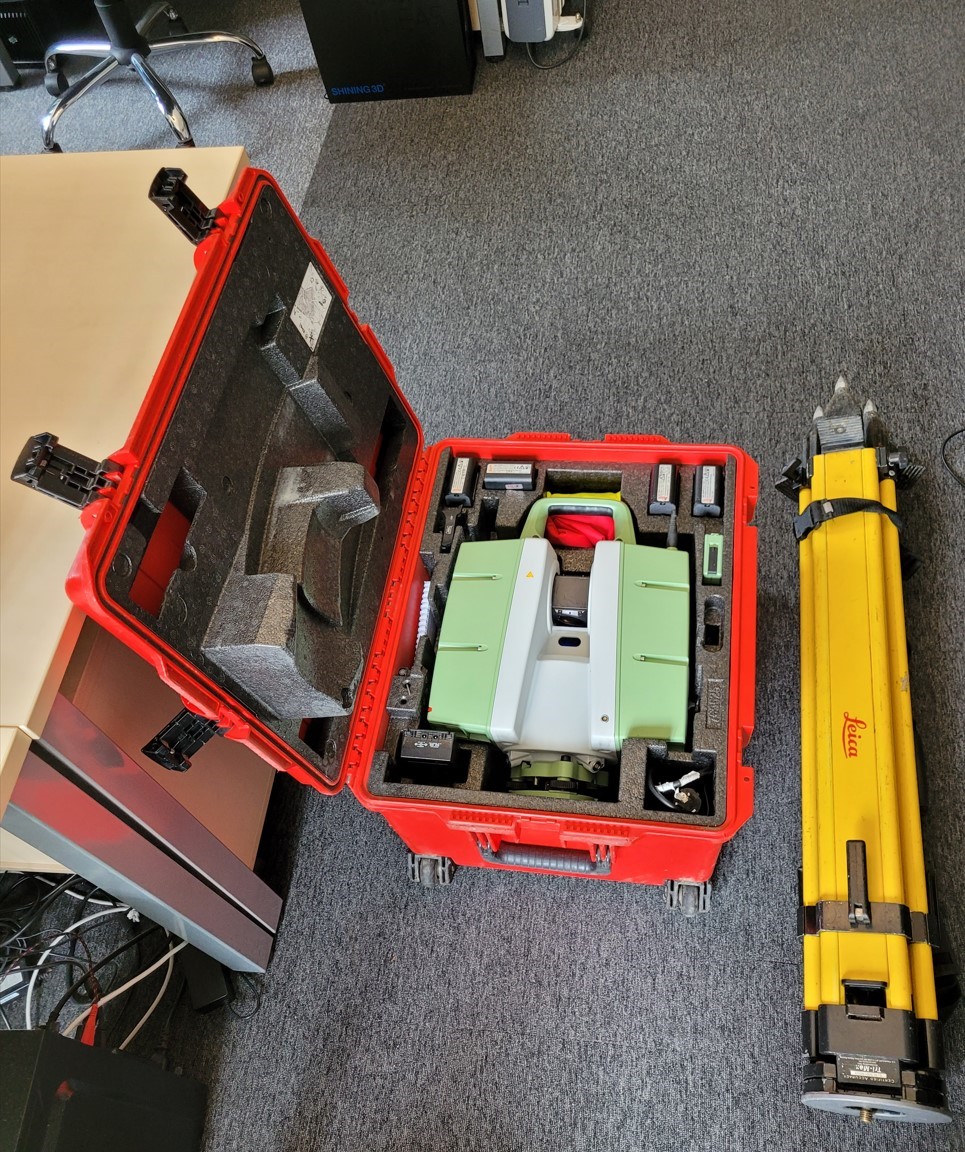

• Accessories available are transport case, 4x internal batteries, battery charger, data cable, distance holder, height meter, AC power supply, tripod star, and upside mounting adapter.
• Specifications include up to 120 m scanning range, 1,000,000 points/sec scanning rate, 360 degrees horizontal or 270 degrees vertical field-of-view, 256 GB onboard SSD or external data storage capacity, up to 50 Hz scanning optics with internal battery, 5 MP with each 17 x 17 degrees color image, 658 nm visible wavelength, 640 x 480 pixels onboard display, -20 to +50 degrees C operating temperature, 100 to 240 VAC power supply and 40 Watt power consumption.

SPECIFICATION OVERVIEW

• Up to 120 m scanning range
• 1,000,000 points/sec scanning rate
• 360 degrees horizontal or 270 degrees vertical field-of-view
• 256 GB onboard SSD or external data storage capacity
• Up to 50 Hz scanning optics with internal battery
• 5 MP with each 17 x 17 degrees color image
• 658 nm visible wavelength
• 640 x 480 pixels onboard display
• -20 to +50 degrees C operating temperature
• 100 to 240 VAC power supply and 40 Watt power consumption

Productivity & Accuracy

An innovative combination of advanced time-of-flight range measurement plus modern Waveform Digitising (WFD) technology enables the compact Leica ScanStation P20 to achieve ultra-high scan speeds and low-noise performance at extended range (to 120 m). Together with high-accuracy angular measurements and survey-grade tilt compensation, Leica ScanStation P20 delivers unprecedented ultra-high speed scan data quality for as-built and scene surveys.

Scan up to 1 million points per second

Leica ScanStation P20 is the ideal instrument when very short time windows are available for capturing High-Definition Survey™ data or when ultra-high density, full dome scan data is needed for client deliverables.

Unmatched environmental capabilities

Developed and manufactured by Leica Geosystems, Leica ScanStation P20 lets users apply ultra-high speed scanning in operating temperatures ranging from –20° C to +50° C. Moreover, with an Ingress Protection rating of IP54 and an eye-safe laser class 1 rating, users can reap the benefits of ultra-high speed scanning for even more sites and projects.
