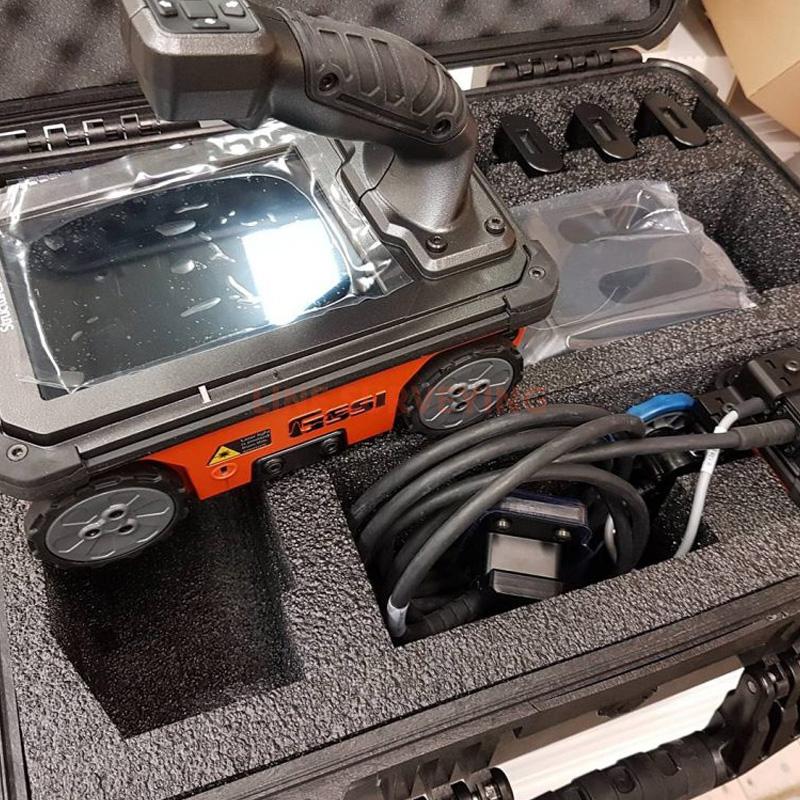

GSSI StructureScan Mini XT GPR

The StructureScan Mini XT is the tool built to handle all your job site and survey needs. This rugged system is designed with an integrated display for single operator data collection and interpretation. Reduce safety risks, financial exposure, costly delays and provide the full-range of services to your customers by adding this concrete scanner to your toolbox.

The Mini XT is ideal for concrete inspection and evaluation. Easily and accurately locate the position and depth of metallic and non-metallic objects in concrete structures, including rebar, conduit, post-tension cables, pan decking, voids and service utilities.

Includes:

• All-in-one Control Unit, 2700 MHz antenna and survey wheel combo
• Lithium-ion battery (2)
• Dual bay battery charger
• Rugged transit case
• Quick Start Guide
• Sample 3D data collection grid pack
• 2 year warranty
• RADAN 7 Software License for StructureScan Mini

The StructureScan Mini XT is GSSI’s newest generation of our very popular all-in-one ground penetrating radar systems. The StructureScan Mini XT offers a 2.7 GHz antenna for superior target resolution and can reach depths up to 60 cm (24 in). This system is designed with the option for users to add accessories and tailor the unit to specific applications. With multiple modes of operation, the StructureScan Mini XT is ideal for locating rebar, conduits, post-tension cables, voids and real-time determination of concrete slab thickness, typically used to:

• Find rebar, post tension, conduits, and non-metallic objects
• Measure slab thickness and void location
• Concrete scanning and imaging
• Condition assessment
• Structure inspection

Specifications
