GSSI SIR 3000
The GSSI SIR 3000 has been the industry’s number one choice for data accuracy and versatility since its release in 2002. It is a tool developed to save time, money and even lives. Though this controller is not currently for sale, GSSI continues to support our SIR 3000 customers and clients.

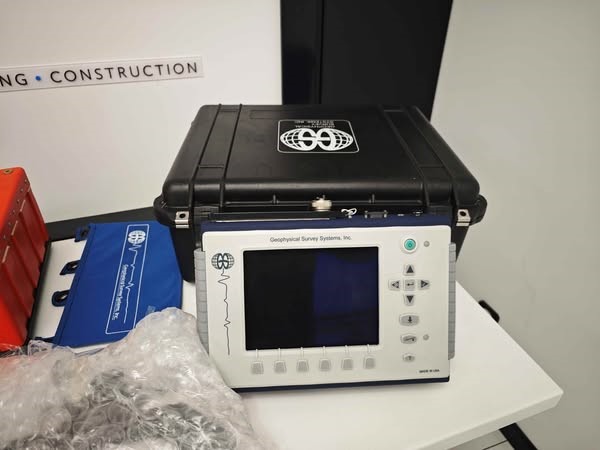

GSSI SIR 3000 GPR 400Mhz Antenna and Cart
• GSSI SIR-3000 with every option and like new condition.
• The unit comes with 1600Mhz antenna (primarily used for concrete inspection).
• Hand cart (used for many different inspections).
Compatible used to:
- Concrete inspection
- Utility location
- Geological investigation
- Archaeology
- Forensics
- Bridge deck inspection
- Mining
- Turf analysis
Includes:
- GSSI SIR-3000 Control Unit with 1600Mhz antenna and Hand Cart
- Connector Cables
- Accessory Cables
- Extender Pole
- Waist Strap
- 2 Lithium-ion battery, Dual-bay battery charger, AC adapter
- Sunshade
- Transit case
- User Manual
- RADAN 7 Software included
Specifications
| System | |
| Antennas | Compatible with all GSSI antennas |
| Number of Channels | 1 (one) |
| Data Storage | Internal memory: 2 GB Flash memory card Compact Flash port: Accepts industry standard CF memory up to 8 GB (user provided) |
| Display | Enhanced 8.4: TFT, 800×600 resolution, 64K colors |
| Display Modes | Linescan, O-scope, 3D |
| Data Acquisition | |
| Data Format | RADAN® (dzt) |
| Scan Rate Examples | 220 scans/sec at 256 samples/scan, 16 bit 120 scans/sec at 512 samples |
| Scan Interval | User-selectable |
| Number of Samples per Scan | 256, 512, 1024, 2048, 4096, 8192 |
| Operating Modes | Free run, survey wheel, point mode |
| Time Range | 0-8,000 nanoseconds full scale, user-selectable Gain: Manual or automatic, 1-5 gain points (-20 to +80 dB) |
| Filters | Vertical: Low Pass and High Pass IIR and FIR Horizontal: Stacking, Background Removal |
| Languages | English, French, Italian, German, Spanish, Japanese, Chinese |
| Operating | |
| Operating Temperature | -10°C to 40°C ambient |
| Charger Power Requirements | 15 V DC, 4 amps |
| Battery | 10.8 V DC, internal |
| Transmit Rate | Up to 100 KHz |
| Input/Output | |
| Available Ports | Antenna input / DC power input / Serial RS232 (GPS port) / Compact Flash memory / USB master slave |
| Dimensions | 31.5 (L) x 22 (W) x 10.5 (H) cm / 12,4″ x 8.7″ x 4.1″ |
| Weight | 4.1 kg, (9 lbs) including battery |
| Environmental | Water Resistant |
