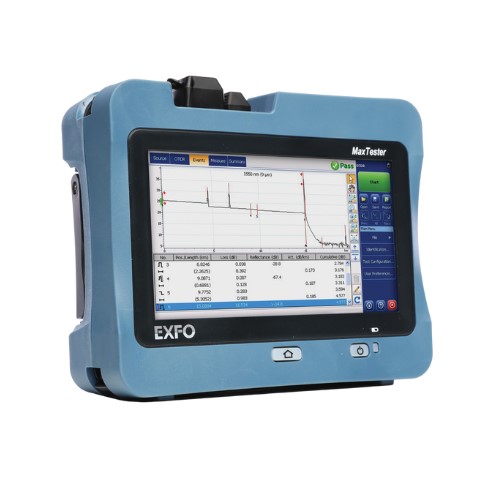

EXFO MAX-720C
The MaxTester 720C Series is the first tablet-inspired OTDR series that is useful, lightweight, and rugged for any testing environment. With its 7-inch enhanced touchscreen, it provides an unprecedented user experience.
- EXFO MAX-720C is designed for testing Single Mode (SM) and Multi Mode (MM) fiber optic cables.
- Approximate measurement distance of 110 km with a 36 dB dynamic range.
- 7-inch touchscreen suitable for outdoor use.
- Provides accurate fiber characterization on first test with its effective dynamic range, ideal for private/corporate networks, data centers, and FTTx/PON (up to 1×32 splitter) networks.
Technical Specifications:
- Testing for FTTx/PON fiber lines.
- Approximately 110 km measurement distance with a 36 dB dynamic range (Single Mode).
- Wavelengths: 850/1300/1310/1550 nm.
- Dynamic Range: 27/29/36/35 dB.
- Measurement Distance: 0.1 – 40 km in Multi Mode, 0.1 – 260 km in Single Mode.
- Pulse Width: 3 – 1000 ns in Multi Mode, 3 – 20,000 ns in Single Mode.
- 2GB internal storage.
- 7-inch outdoor suitable touchscreen display.
- Support for Turkish and English languages.
- Optional Power Meter and Visual Fault Locator can be added.
- Weight: 1.5 kg.
Package Contents:
- 1 x EXFO MAX-720C
- 1 x Original Carrying Case
- 1 x Original Kit
