Elvatech ProSpector 2 handheld XRF Analyzer
$2,750
In stock
Elvatech ProSpector 2
• Manufacturer: Elvatech
• Model: ProSpector 2
• Condition: Used, in great working condition and ready to use

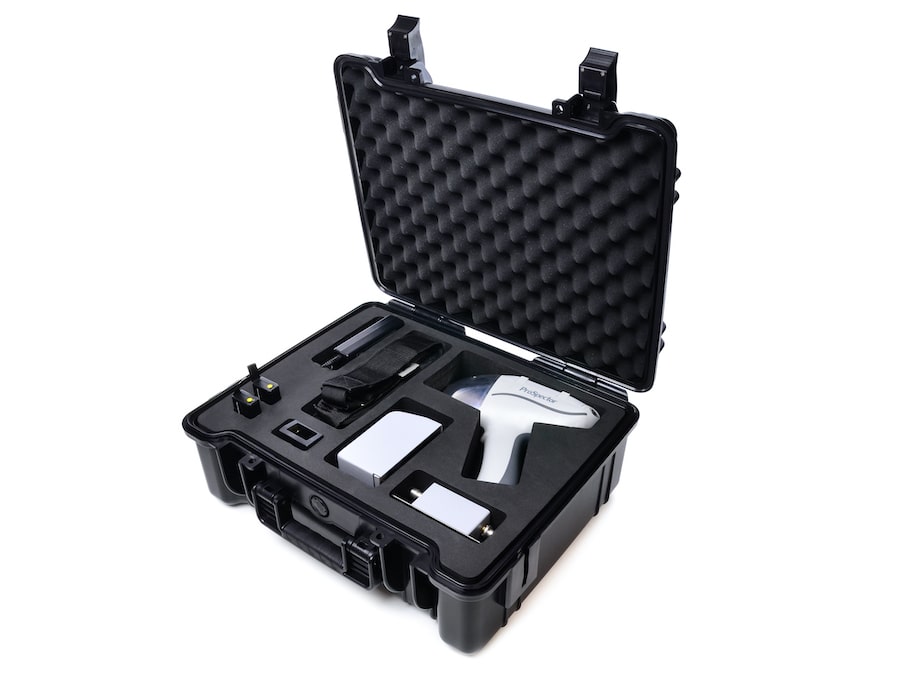

• What’s in the box: ProSpector 2 XRF Analyzer, Battery (2 pcs.), Charger, Spare filters, USB Flashdisk, Micro SD, Hard carrying case.
ELVATECH PROSPECTOR 2
Elvatech ProSpector 2 handheld XRF Analyzer is our time-tested handheld XRF analyzer. Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. It is an intuitive and user-friendly instrument for highly accurate elemental analysis in a variety of applications.
Benefits
- High speed of operation @ above 500 000 CPS count rate
- Ambient temperature and pressure corrections for highest stability
- Over 10 hours operation from the battery
- Detector protection
- Extensive and editable alloy grade library
- Protective film replacement with no tool required
- Full compatibility with ElvaX PC software
- Radiation safety: IR proximity sensor and low count detection
- Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc.
- Great choice of accessories for comfortable work.
ProSpector 2 is a powerful handheld XRF analyzer, designed by Elvatech. Due to the advanced hardware and unique software algorithms, ProSpector 2 provides ultimate speed and accuracy of the elemental analysis. ProSpector 2 combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in seconds.
Specifications
| Digital X-Ray Source digiX-40 | |
| Anode | Rh, W |
| Voltage: | 40 kV |
| Current: | 200 uАmp |
| Power: | 4 W |
| 5 positions filter changer | |
| X-Ray Detector | |
| Type: | SDD (optional PIN) |
| Area: | 30 mm2 |
| Energy resolution: | <140 eV @ 5.9 keV |
| Count rate: | 500,000 cps |
| Electronics | |
| DPP: | proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate |
| MCA: | 4096 channels |
| Display: | 4.3″ |
| Connectivity: | USB, Bluetooth |
| High resolution video camera (option) | |
| General | |
| Dimensions: | 242 х 230 х 78 mm |
| Weight: | 1.4 kg |
| Software | |
| Operating system: | Windows EC7 |
| Analysis algorithms: | Fundamental parameters (FPA), Empirical (regression) calibrations |
| Features | |
| X-Ray Tube | W, 40 kV |
| Primary Filters | Single |
| Collimators | Single |
| X-Ray Detector | Si-PIN-Diode |
| Detection Range | Cl – U |
| CCD Camera | No |
| Temperature correction | Yes |
| Barometric correction | No |
| Bluetooth | Option |
| Wi-Fi | No |
| Ingress Protection | IP54 |
