API OmniTrac 2 Laser Tracker CMM and Accessories

OMNITRAC 2

Stable operation in harsh environment

Omnitrac 2 is an ideal measurement tool for a wide variety of applications, both indoors and outdoors. With compact structure and wireless design, the product can enter into a narrow space that cannot be accessed by other measurement systems for measurement.

The Omnitrac 2 has a rugged design and construction that makes it ideal for use in harsh factory conditions. It is also equipped with a built-in battery that can work continuously for up to 6 hours. It also has an optional AC/DC interface. Within minutes of starting up, Omnitrac 2 achieved about 90 percent accuracy. Omnitrac measuring distance of up to 100 meters, the working temperature for – 10 ° to 60 ° C, C weighs 10 kilograms.

All built in, with unparalleled compactness

• Omnitrac 2 integrates all the equipment required for measurement, including the controller, weather station, tilt sensor and battery, to transmit data over WiFi.
• Omnitrac 2 operates using ADM (absolute ranging) technology. Omnitrac 2 can be installed at any location for measurement: top mount, vertical wall mount, tilt mount, under or inside parts.
• Carry the Omnitrac 2 laser tracker with you, and you can make measurements anywhere.

SPECS :

Range of Measurements:
Linear Range (Diameter): 200 m (with selected targets), 160 m (525 ft with 80m target)
System Performance:
Azimuth Range:  ± 320º (640º end to end)
Elevation Range:   79º / -59º
Angular Resolution:  ± 0.018 arc seconds
System Angular Accuracy:  3.5 μm/m*
System Resolution:  0.02 arc seconds
Maximum Lateral Target Speed:  180º / sec
Maximum Acceleration:  > 2 g
Maximum Battery Life:  6 hours (internal battery, Capable of hot-switching with External battery)
Internal Level Accuracy:  ±2 arc-second
Internal Level Range:  ±2 degrees

ADM2:
IR Laser (ADM-Maxx™):  Class I (eye safe)
Accuracy:  ± 25 μm or 1.5 μm/m* (which ever is greater)
Resolution:  0.1 μm

Environmental:
OperatingTemperature:  -10º C to > 45º C
Storage Temperature:  -10º C to 60º C
Barometric Pressure:  8 mmHg – 825 mmHg
Relative Humidity:  10-95% non-condensing
Altitude:  -700 m – 3000 m

Autolock (Automated Target Search):
Full Range Pointing Accuracy:  2”
Field Of Vision:  ±12.5º (diagonal)

Dimensions:
Tracker Weight:  10.9 kg (24 lb)
Tracker Size:  Height: 43 cm (16.95 inches)
Width:  19.8 cm (7.8 inches)

Includes:

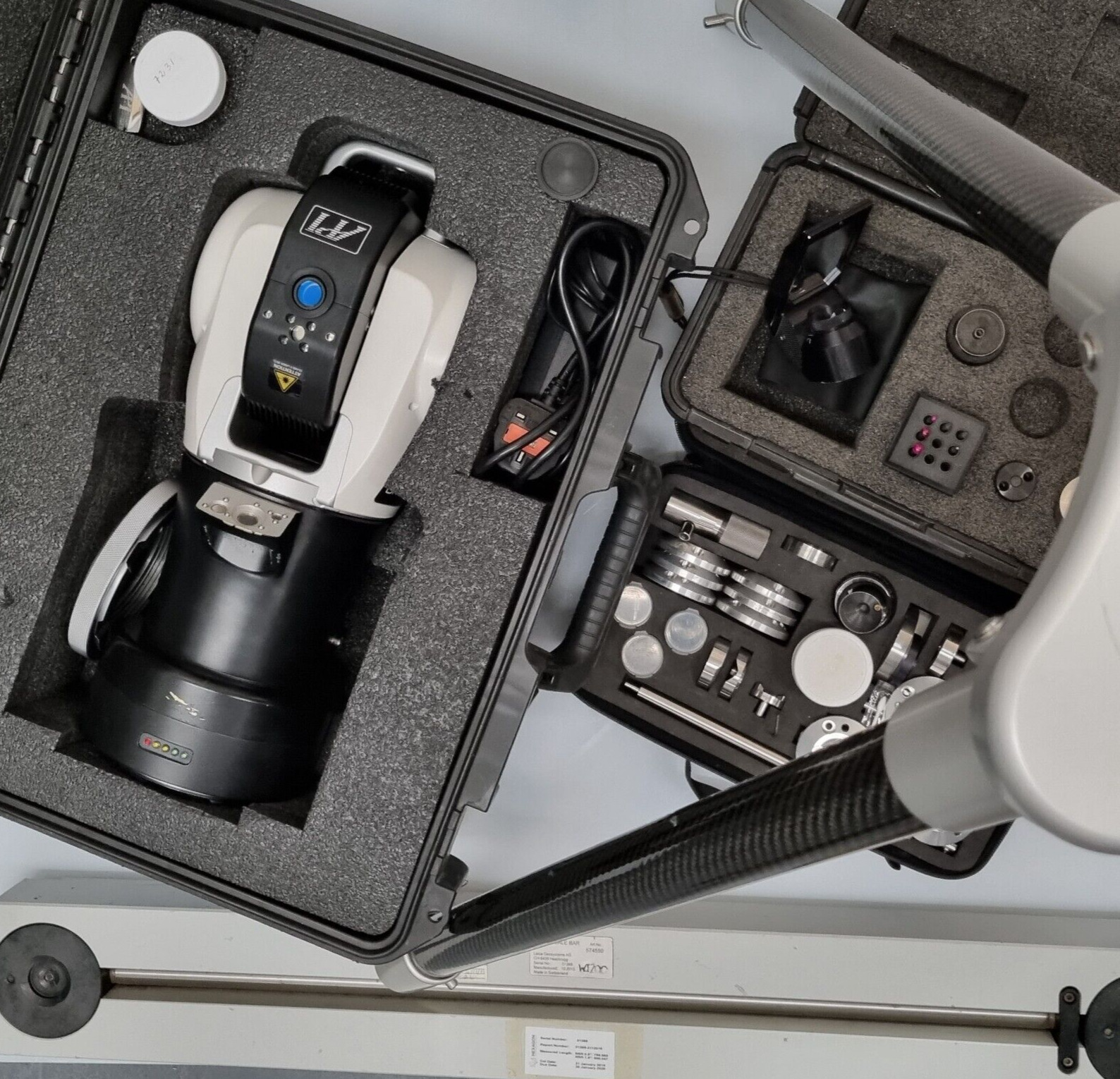

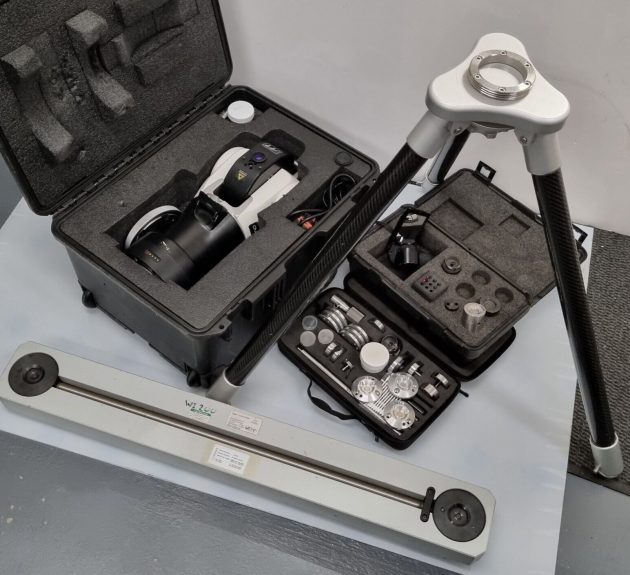

• (1X) API OmniTrac 2 Laser Tracker with all standard accessories
• (1X) API Control Software on USB
• (1X) S-FIX Fixed Height Carbon Tripod

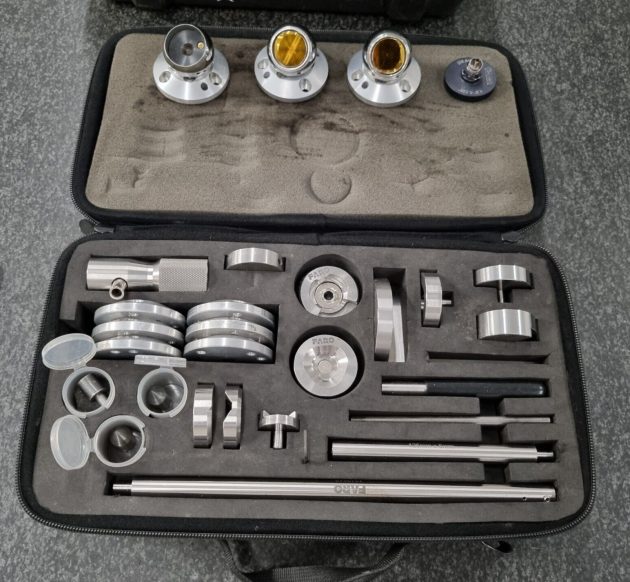

• (1X) Laser Tracker Tooling Kit with some extras
• (1X) API SMR
• (1X) Hexagon Metrology 800 mm SMR
• (1X) SMX Retro Probe 100 Kit
