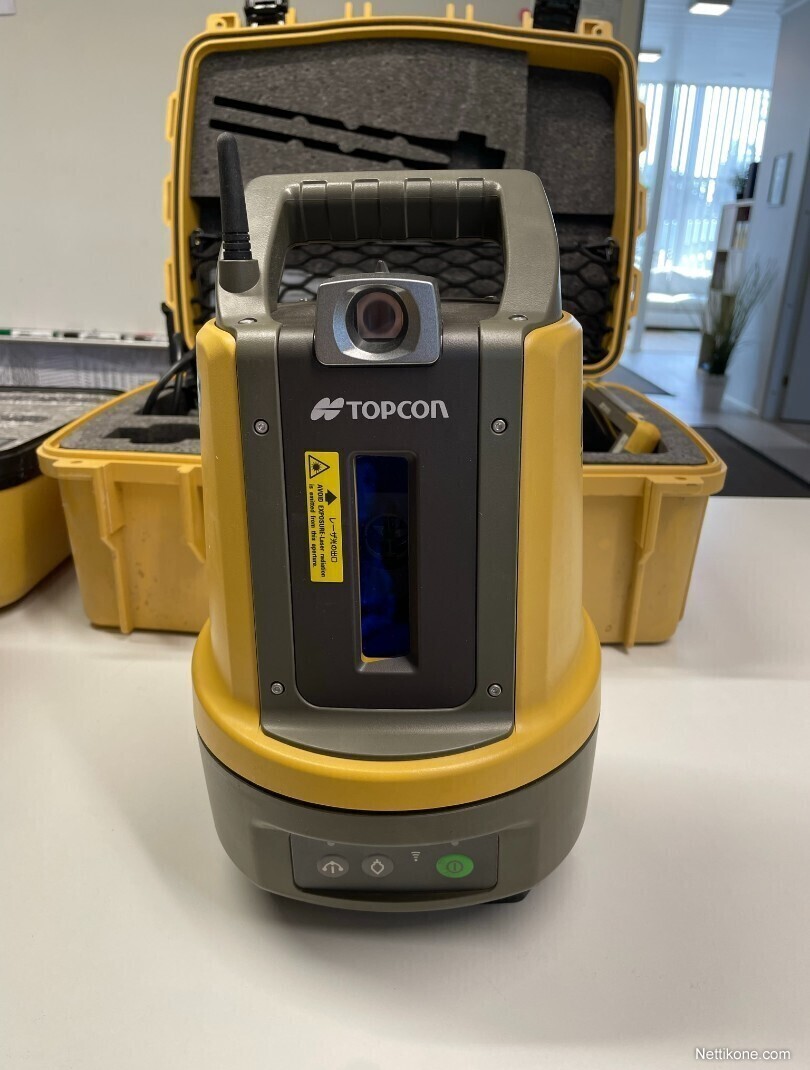

TOPCON LN-100
The Topcon LN-100 Layout Navigator with Bluetooth & Wifi is a simple 3D laser positioning tool for all construction layout applications. Combining self-leveling laser and robotic total station technologies, this Topcon layout tool automatically turns to layout points and tracks a standard prism up to 328 feet working radius. It is self-leveling within ±3 degrees and has an accuracy of up to ±1/8 inch at 164 feet (±1.5 mm at 50m).
With a built-in wireless ready connection, the LN-100 construction layout laser can be controlled using a data collector with Magnet Field surveying software or with the no-cost Android app called Magnet Construct. In addition, this Topcon layout navigator features an integrated laser plummet for quick tripod setups and a 360-degree horizontal coverage.
Compact, rugged, and lightweight, the Topcon LN-100 robotic layout navigator has a completely sealed dustproof and water-resistant housing. Plus, has an easy-grip carrying handle and a battery life of up to five hours.
Topcon LN-100 Features
- Range up to 328 feet working radius
- ±1/8 inch at 164 feet accuracy
- Self-leveling within ±3 degrees
- Simple 3D laser positioning
- 360-degree horizontal rotation
- Automatically turns to layout points
- Easy one-button self-leveling setup
- Tracks a standard prism
- Android phone or tablet controlled
- High-visibility guide lights
- LED indicators and bright laser plummet
- Out of the box usage with no-cost MAGNET Construct app on any Android device
- Choice of 2 packages
- Wireless-ready connectivity
- Bluetooth
- Easy one-button setup
- Mounts on tripod or column clamp
- Dustproof and water resistant to IP65
- Easy-grip handle
- Lightweight and compact
Specifications:
|
Laser
|
|
| Color | Red |
| Wavelength | 690 nm |
| Classification | Class 1 |
| Direction | Horizontal |
| Visibility | Visible |
|
Range
|
|
| Exterior | Up to 328 feet (100 m) |
| Self Leveling | ±3 degrees |
|
Battery/Power
|
|
| Battery Life with Rechargeable Battery Pack | Up to 5 hours |
| Power Source | BDC70 batteries |
| Battery Life Alert | Yes |
|
Features
|
|
| Automatic Shut-Off | Yes (30 minutes) |
| Protection Class | IP65 |
| Adjustable Rotating Speed | 60°/second (10 rpm) |
|
General
|
|
| Weight | 9.0 lbs (4 Kg) |
| Dimensions | 7.28″L x 7.71″W x 11.61″H |
|
Accuracy
|
|
| Vertical | ±25° up to 22 m. |
|
Temperature
|
|
| Storage | -22 to 140° F (-30 to 60°C) |
| Operating | -22 to 122° F (-20 to 50°C) |
|
Charger
|
|
| Input | 100 to 240 V AC |
| Charging Time | About 5.5 hours |
|
Functions
|
|
| Automatic Leveling | Yes |
|
Applications
|
|
| Checking/Setting Elevations | Yes |
| Transferring Points from Floor to Ceiling | Yes |
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Installation/Leveling Ceiling Grids | Yes |
| Squaring and Layout of Partitions, Walls & Tile Floors | Yes |
| Concrete Forms, Footings and Foundations | Yes |
| Plumb Reference | Yes |
| Checking Elevations of Sub-Base and Sub-Grade | Yes |
| Checking Building Square & Area | Yes |
