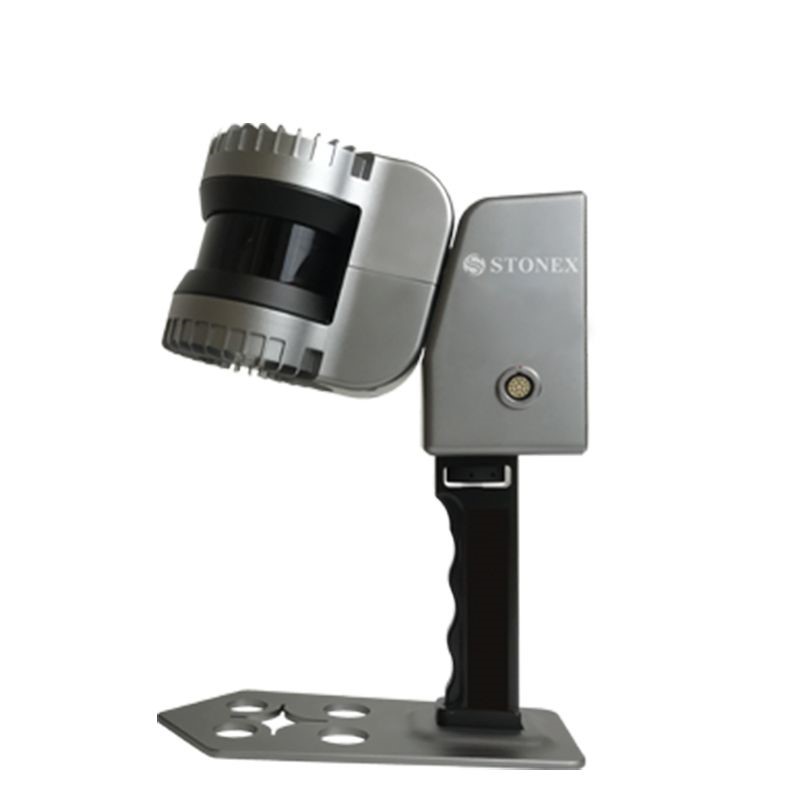

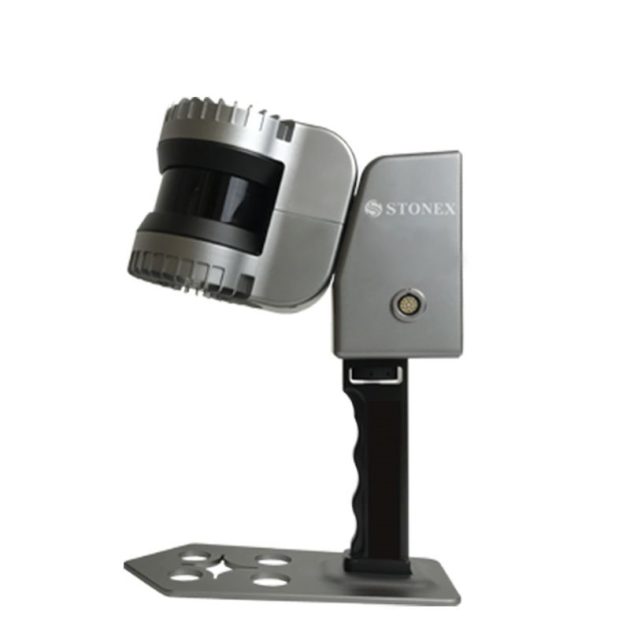

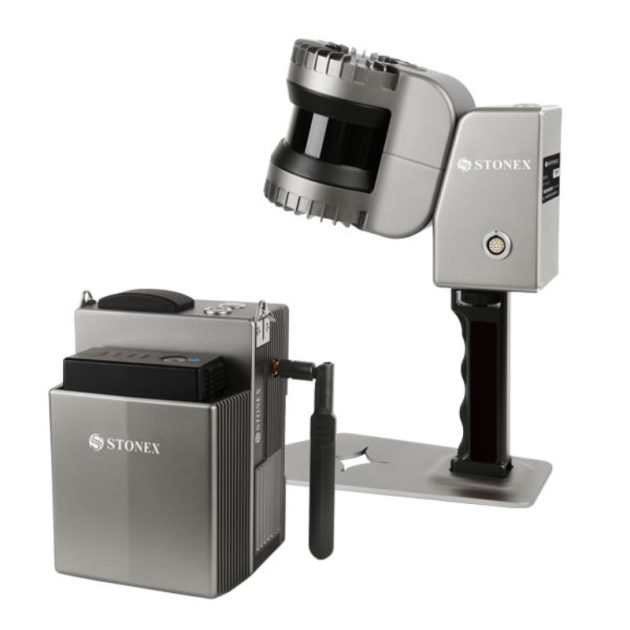

Stonex XH120 SLAM 3D Laser Scanner
Original price was: $20,000.$16,500Current price is: $16,500.
In stock
This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time. XH120 is an handheld 3D laser scanner based on STONEX SLAM technology. Boost your productivity reducing on site capturing time and post processing workload!
STONEX XH120
Stonex XH120 is an handheld laser scanner based on STONEX SLAM technology.
This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time.
Boost your productivity reducing on site capturing time and post processing workload!
RAPID SCANNING
No more multiple scan stations, just move around the scene and collect in minutes the entire 3D point cloud.
REDUCED WORKLOAD
No more tedious and time-consuming cloud to cloud alignment, download the full data right after the capture.
STONEX SLAM TECHNOLOGY
Best in class sensors and real time processing: more range, more speed, more resolution, greater field of view, more reliability.
REAL TIME
See your scanning progress in real time and control XH120 with your tablet or smartphone.
CHARACTERISTICS
• Rapid scanning (655.360 p/s)
• Easy to use – no surveyor skills
• Longest Range, Rotating Scan
• Real time 3D point cloud
• In & outdoor (no need of GPS)
• No need of scan alignement
XH120 TECHNICAL FEATURES
Performance
- Max Range: 120 m
- Scan Speed: 655.360 points/s
- Range Accuracy: ± 3 cm
- Precision: ± 0.7 – 5cm
- Range Resolution: 0.3 cm
- Vertical Resolution: 32 channels
- Field of View: 360° (Horizontal)
45° (Vertical) - Number of Returns: 1 (strongest)
- Rotation Rate: 20 Hz
- Angular Sampling Accuracy: ±0.01° (Vertical)
±0.01° (Horizontal) - Safety: Class 1 (eyesafe) laser
System
- Memory: 500GB (expandable)
Electrical
- Power Supply: DC 18-36V/40W
- Operating Time: 4 hours (single battery)
Physical
- Scanner Weight: 2 kg
- Processing Unit Weight: 1.7 kg
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Waterproof/Dustproof: IP54
- Material: Aircraft grade aluminium
Includes:

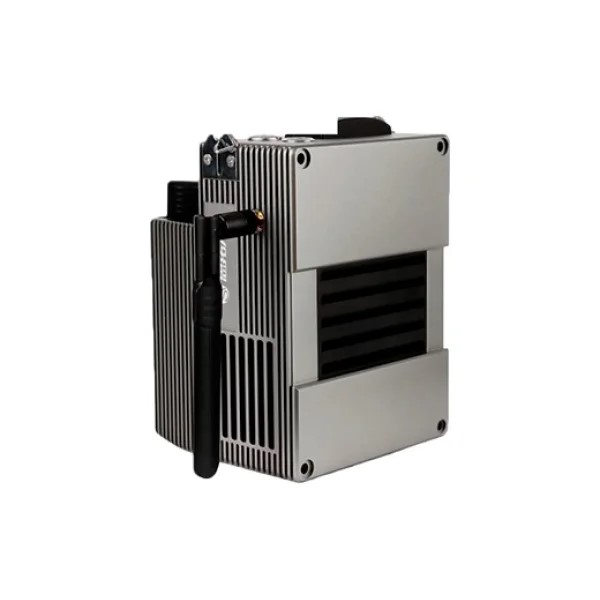

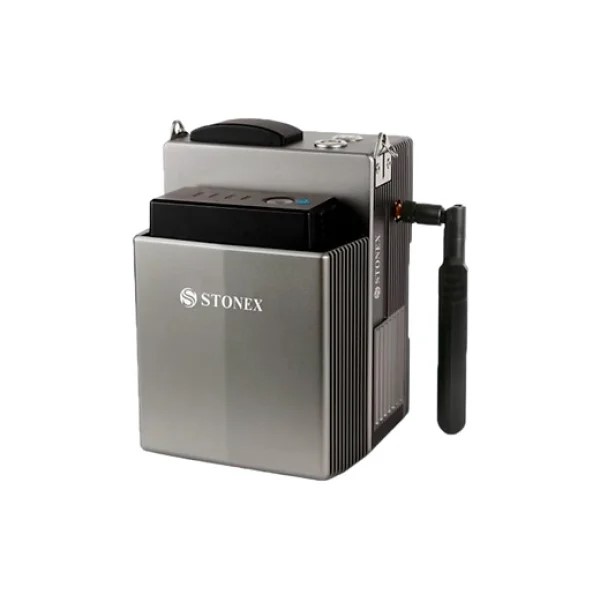

• Processing Unit
• Battery x2
• Charger adapter
• Data Cable
• Wifi antenna
• Straps
• Flight Case trolley
• Cube-slam Software
• XH120 manager
