PERMOBIL F5 CORPUS VS

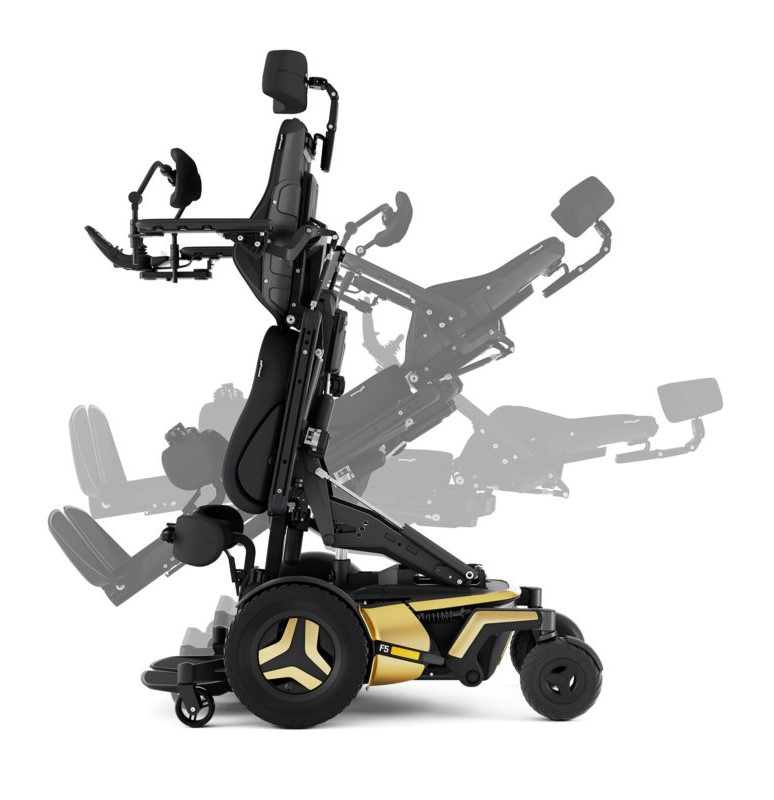

The F5 Corpus VS power wheelchair combines all of the performance features of the F5 Corpus with superior power standing wheelchair functionality. Fully programmable standing sequences allow user position to be optimized using supine, semi-reclined or sit to stand techniques. Further customise standing positions with adjustable anterior chest pad, moldable knee supports and power articulating footplates. From face-to-face interactions to improved health outcomes, the F5VS empowers you to explore the vast array of standing wheelchair benefits.
“Right after my injury, one of my biggest fears was that i would never be able to return to the outdoors. This chair has really afforded me the opportunity to get out an experience life.”
The Corpus® Seating System.
Our new dual density backrest foam promotes greater surface area contact while the redesigned Ergo seat pelvic well insert can help pressure redistribution and reduce peak pressures. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam.
Unprecedented Functionality.
With features like programmable power footplates and standing backrest angle adjustments all while retaining 50º of tilt, the F5 Corpus VS stands without compromise.
Features
ComfortRide Pro Suspension
Conquer your world with ComfortRide and ComfortRide Pro fully independent, adjustable suspension. Enjoy superior vibration reduction, ride comfort and drive performance for the widest variety of power wheelchair driving scenarios. The front wheel driving experience is further enhanced by the patented ESP (Enhanced Steering Performance) gyroscope tracking technology, which provides exceptional tracking at high speeds, on side slopes or with alternative drive systems.
ActiveHeight™
Rise above the status quo with 12″ and 14″ seat elevator options that help you reach new heights. Active Height is unique in that while elevating, the seating system repositions 3.5″ to maintain optimal forward stability and allows the user to get closer to objects. It is also the only seat elevator that does not lock out suspension at full elevation, so keep pace with a smooth ride at a top speed of 5.2kmh (3.2mph).
ActiveReach™
ActiveReach™ technology enables you to reach for more by creating 4.5″ of additional reach. This can be used for reaching beyond obstructions, into high cabinets, or even assist in transfers. Truly putting your world into reach. While functional reach and transfers are improved using a seat elevator, many functional tasks are still limited as the chair is positioned sideways to the task at hand or your knees are unable to remain under tabletops. Permobil’s ActiveReach™ pairs 12″ and 14″ of seat elevation with functional reach packages so that your world is in reach while also allowing for a variety of possible transfer positions.
Comfort is King
Corpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimized power positioning has been enhanced with Corpus Ergo Seat cushion with redesigned pelvic well and new Corpus Ergo backrest cushions with dual density foam. New Stretch-Air cover option is a breathable, machine washable fabric with a low moisture vapor transfer.
Make a Statement
New high power LED head lights are twice as bright, making it easier to see and be seen. With a sleek new design, expanded color/hydrographic options and powerful new LED lighting you should be prepared to turn a few heads in your new F-Series.
Redefining Support
The chest bar and knee blocks on the F5 Corpus VS have been completely redesigned for comfort and accessibility. With features like simplified adjustment points and quick release mechanisms, utilizing a standing wheelchair has never been easier.
Automatic Anti-Tippers
The F5 Corpus VS’ powered anti-tippers are attached directly to the chassis and automatically deploy during the stand sequence, providing the most stable standing platform available, no matter the angle.
BodiLink® Accessories now available on Corpus Seating System
BodiLink wheelchair accessories specifically designed for the Corpus power positioning seating system are an ideal combination. Together, they provide best in class hardware and anatomical support to provide the highest level of articulation and comfort to meet a vast array of positioning needs.
Specifications:
| Maximum User Weight | 300lbs 136 kg |
| Maximum Speed | 6 mph 10 km/h |
| Driving Range (1) | 19 miles 32 km |
| Base Width | 25.5″ 648 mm |
| Base Length | 43″ 1093 mm |
| Minimum Turning Radius | 30″ 762 mm |
| Ground Clearance | 3″ 75 mm |
| Drive Electronics | R-net 120A |
| Battery Type | Group 24 Gel |
| Seat Elevator | 14″ 350 mm |
| Seat to Floor Height | 17.5″, 18.5″, 19.5″ 445, 470, 495 mm |
| Power Tilt Options | 0° – 50° Posterior |
| Recline Options | 85º-180° (Power) |
| Legrest Elevation | 85° – 180° |
| Armrest Pad Lengths | 10″, 13″, 16″, 18″ |
| Seat Widths | 17″ – 23″ (by 2″ increments) 420 – 570 mm |
| Seat Depths | 14″ – 22″ (by 1″ increments) 370 – 570 mm |
| Backrest Heights | 23″ – 28″ (by 1″ increments) 580 – 710 mm |
