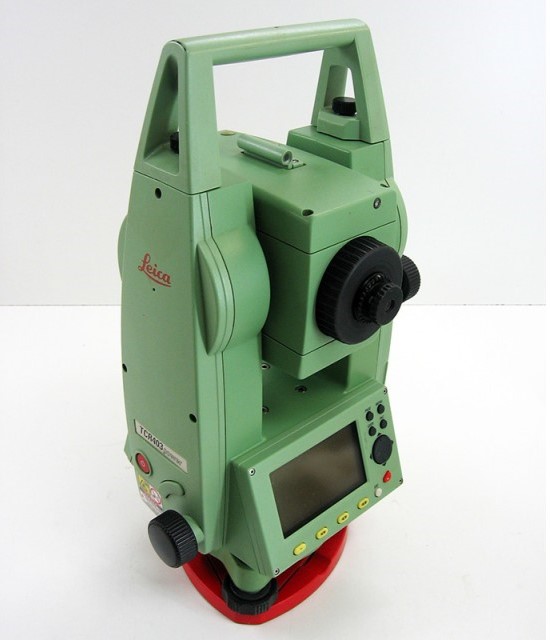

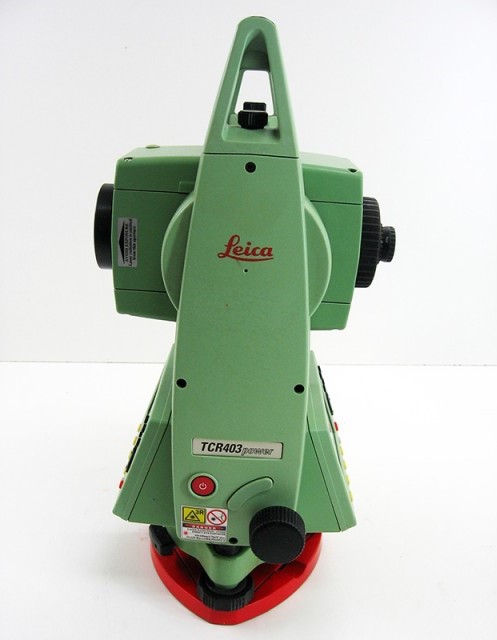

LEICA TCR 403

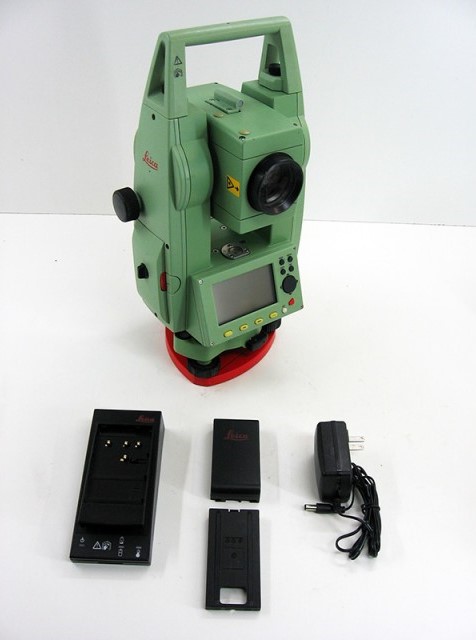

Leica TCR403 Power total station with 3” angle accuracy and dual compensator on V&H axis to compensate tilt error in any directions. Data transfer to a personal computer or any data collectors is possible with the RS-232C interface, and also memory on board can store up 8000 points, which will save you the purchase of data collectors. Unit has a detachable tribrach for convenience of moving it to different set up locations. If you are interested in a specific brand or model please let us know since with over 500 total stations in stock there is a good chance. Please note actual accessory items, which come with unit, is what it says in auction list not what appear in pictures.
Specifications:
- Magnification: 30X
- Image: Erect
- Minimum focusing distance: 1.5m/4.5’
- Angle accuracy: 3”/1.0 mgon
- Angle minimum display reading: 1”/3”
- Angle reading system: Dual-side reading
- Angle units: Switchable between meter or feet, angle degrees or gon
- Distance measurement: 1 Prism: 5,250’, 3Prism: 6,560’, Compact prism CP01: 1,970’, Mini pole prism: OR1PA 980’
- Distance measurement to target sheet RS90N-K: 200’
- Distance measurement to target sheet RS50N-K: 160’
- Distance measurement to target sheet RS10N-K: 70’
- Distance measurement precision: ±(3mm+2pmm) rapid measurement, prism mode
- Distance measuring time: 1.4s+every 0.3s tracking mode
- Distance measuring time: 2.3s+every 0.8s coarse mode
- Distance measuring time: 2.4s+every 1.6s fine mode
- Distance minimum display: 1mm/0.003ft
- Display: Single
- Data input/output: RS-232C compatible, asynchronous serial
- Internal memory: Surveying data + coordinates data total 10,000 points
- Compensator: Liquid dual axis
- Compensating range/Accuracy: ±3’/0.3”
- Optical plummet: Erect 3X
- Weight: 5.1kg, 11lbs including tribrach and battery
