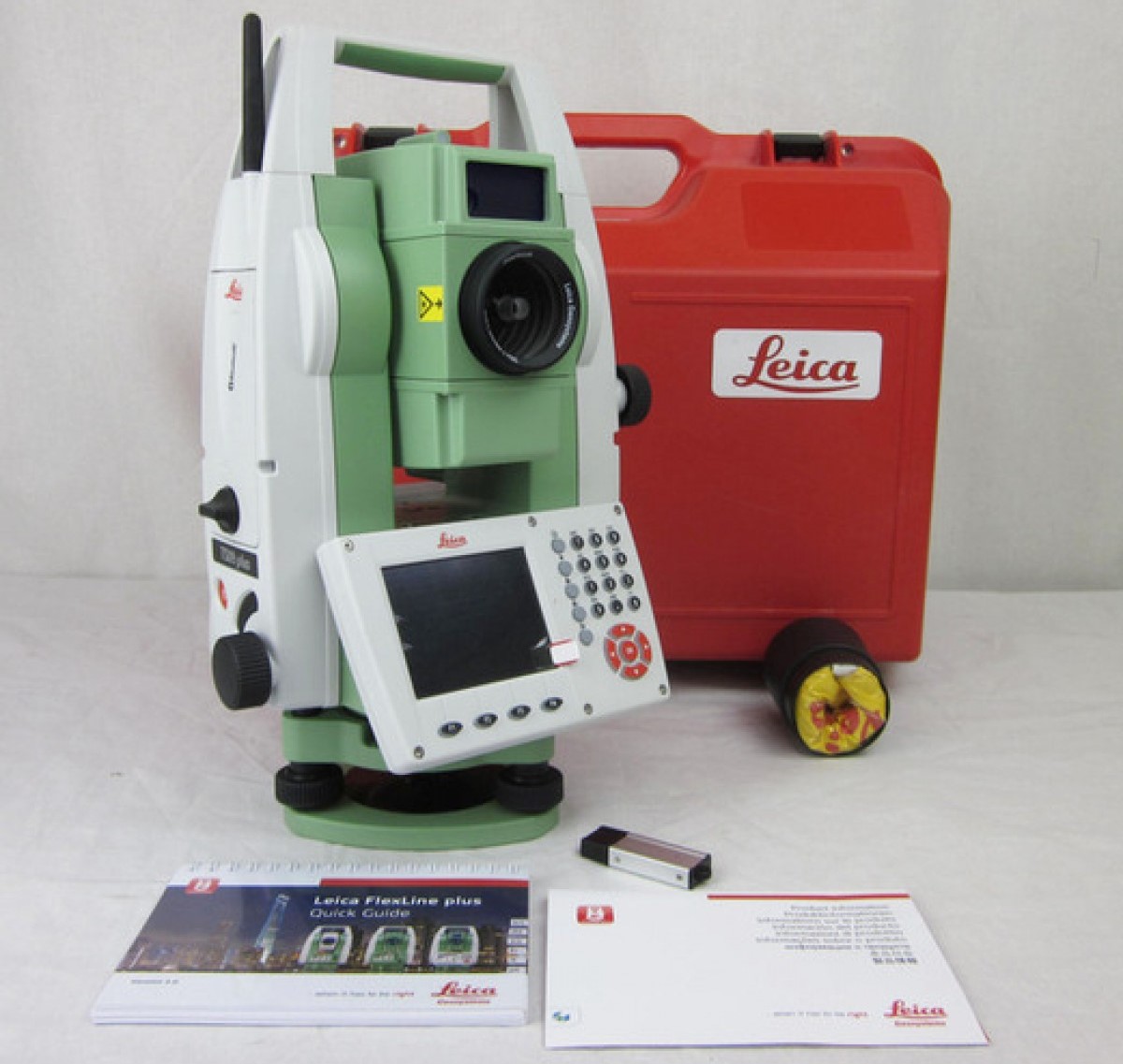

Leica FlexLine TS09 plus Total Station

LEICA FLEXLINE TS09 PLUS

Leica FlexLine TS09 Plus – Performance Guaranteed
A true performance orientated Total Station that continually delivers regardless how demanding the task may be. Designed especially for mid-to-high accuracy applications. Equipped with all FlexLine features from removable USB memory, Bluetooth wireless technology, Emitting Guide Light to a complete range of application software, your TS09 guarantees maximum performance. If more convenient, use Bluetooth wireless technology to connect any data collector, e.g. the Leica CS10/15. Use SmartWorx Viva or the software which best suits your task and familiarity.

• Color & Touch display and Leica FlexField plus Onboard Software
• Work productively with the new Leica FlexField plus onboard software and the new color & touch display.
• Fast navigation inside the software via touch screen, tabs and icons
• High resolution color display to show all information without misinterpretation
• Low learning curve due to guided workflows
• Easy to understand graphics and icons

Best-in-class Electronic Distance Measurement (EDM)
With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time.
1.5 mm + 2 ppm to prism
2 mm + 2 ppm to any surface
Extremely fast (1 second)
1000 m range without a prism
Coaxial laser pointer and measurement beam

Flexible Data Exchange
USB Stick for fast and easy transfer of data (GSI, DXF, ASCII, LandXML, CSV, user-defined)
Built-in wireless Bluetooth for cable-free connection to any data logger, e.g. the field controller Leica Viva CS10 or CS15

Theft protection by Leica Geosystems – mySecurity
mySecurity gives you total peace of mind
If your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used

FlexField & FlexOffice Software
FlexField on-board software and optional FlexOffice Software offer a broad range of functionality to cover all tasks. Benefit from simplicity and functionality in one solution.

Application Programs Included:
Topography (Orientation & Surveying), Stake Out, Resection, Height Transfer, Construction, Area (Plan & Surface), Volume Calculation, Tie Distance (MLM), Remote Height, Hidden Point, Offset, Reference Line, Reference Arc, Reference Plane, COGO, Road 2D, Roadworks 3D, TraversePRO.

Features:

• 1-second accuracy
• 100,000-point internal memory
• 1,640 foot range
• Bluetooth
• R500 reflectorless
• PinPoint laser technology
• Electronic Guide Light for faster stakeout
• Laser plummet and pointer
• Withstands arctic temperatures
• Measurement trigger key on side
• Regular and mini USB ports
• Full FlexField software with standard functional programs
• FlexOffice software helps you effectively view and manage data on your PC
• Setup wizard for low learning curve and guided workflows
• User-defined softkeys
• Larger font size for fast and clear readability
• Up to 30-hour battery life
• Water resistant and dustproof to IP-55
• Backlit color LCD touchscreen display
• Illuminated alphanumeric keyboard
• Theft protection
