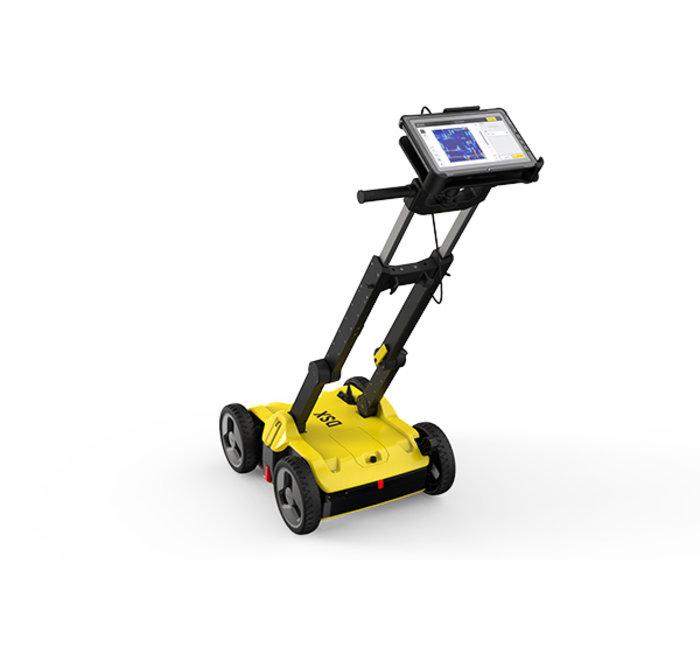

LEICA DSX
The Leica DSX utility detection solution, consisting of portable hardware with intuitive software allows to easily locate, visualise and map utilities. Unlike any other ground-penetrating radar (GPR) system, the Leica DSX maximises productivity with cutting-edge software that automates data analysis and creates a 3D utility map on the field.
Easy to use
- Ensure smooth and accurate underground utility detection without expert knowledge
- Complete utility detection and mapping in just a few steps through the intuitive user interface
- Scan anywhere and at any time, even in narrow areas and under severe conditions
Reliable Detection Results
- Detect all types of underground utilities in high resolution to assure reliable avoidance zones
- Verify detected utilities with support of smart algorithm
- Import of POI’s and utility records to help you make better decisions
Instant 2D/3D Utility Map
- Save your time on site by mapping underground utilities in just minutes
- Export utilities in CAD or BIM-read formats for further usage
- Create professional reports, customised to your and your customers’ needs
Integrated Solution
- Offer a complete workflow from acquire to excavate
- Locate underground utilities with survey-grade accuracy
- Generate utility maps, compatible with all coordinate reference systems
Starter Kit DSX DXplore Perpetual Consists of:
- 1x DSX Utility Detection System
- 1x CT1000 Controller
- 1x DXplore Build Perpetual licence
- 2yr DSX Basic CCP
- 2yr DXplore CCP
| DSX Utility Detection Radar | CT1000 Tablet | ||
|---|---|---|---|
| Central Frequency | 600 MHz | Display | 11.6″ |
| Detection Depth | Up to 2m / 6.56ft | Processor | Intel® Core™ i3-7100U |
| Acquisition Speed | Up to 7km/h or 4.3mph | Memory | RAM 4GB, 128GB SSD |
| Scan Interval | 0.50m / 18in | Operating System | Windows 10 Professional |
| Positioning | 2 encoders on wheels; GNSS antenna integration (Surveyor kit only) | Positioning | GPS (GlobalSat) |
| Environmental | IP65 | Environmental | Sunlight readable display (LCD + Touchscreen + Hard Tip stylus) IP65 / MIL-STD-810G |
| Weight | (without battery and tablet) | Weight | 1.39Kg |
| Battery | Li-ion 14.8V / 5800mAh up to 8 hours operating time |
Battery | Li-Ion 11.4V / 2160mAh |
| Operating Temperature | –10°C to +40°C / 14°F to 104°F | Communications | WiFi, Bluetooth v4.2, 4G LTE (Model 880920) RJ45 – connection to DSX |
| Warranty | 2 years (extension CCPs available) | Warranty | 2 years Global Warranty (battery – 1 yr) |
