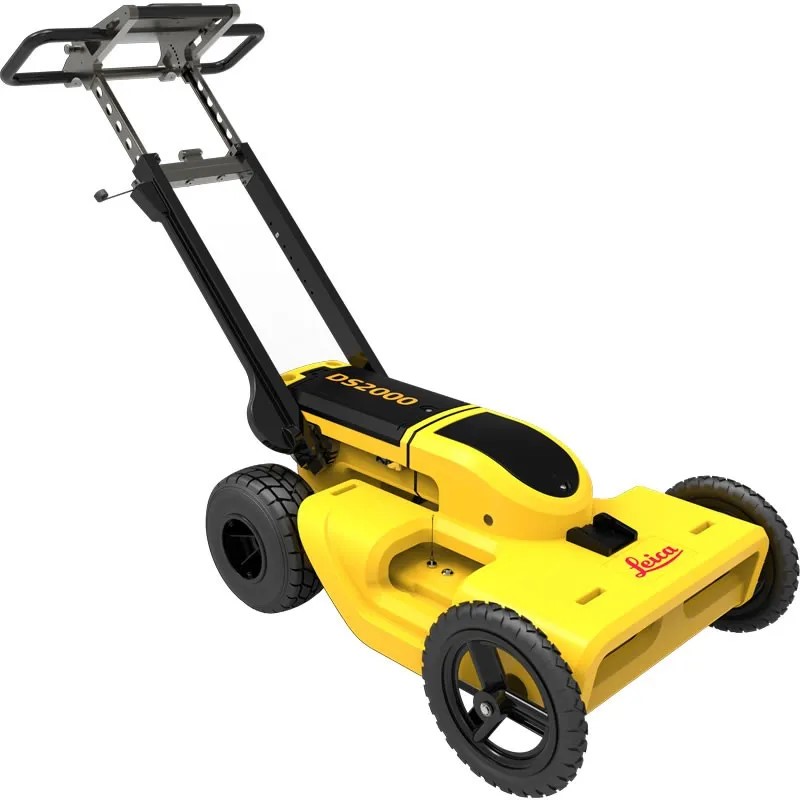

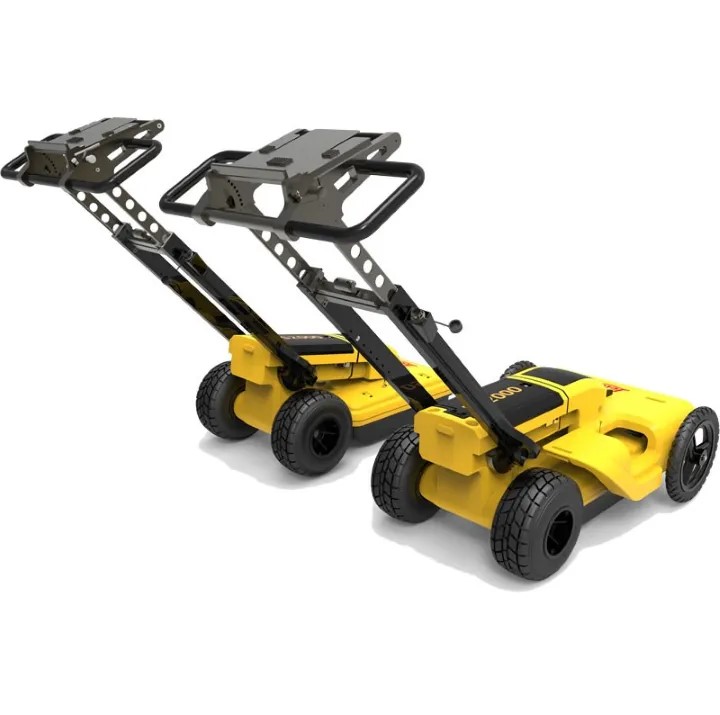

LEICA DS2000
There’s a lot going on underground that you need to know about before you ever start to dig. The Leica DS2000 Utility Detection Radar finds all potential threats, including non-conductive pipes and fibre optics, increasing safety by lowering the risk of accidently hitting underground assets.
Increase safety, speed up work and lower asset management costs with the ability to prevent hazardous outages and collect more information. The DS2000 betters your business by making it safer, faster and more efficient.
Detection and Underground Mapping Solution
Combined with the powerful and rugged Leica CT2000 field tablet, the GG04 plus or the GPS60 smart antenna, and the DD SMART Series cable locators and transmitters, the DS2000 is part of the complete Leica Geosystems detection and underground mapping solution that will enhance your business by making it faster and more efficient. With GRED HD 3D CAD post-processing software, you will be able to convert radar data to a CAD file.
Want to know a few features?
DUAL-FREQUENCY ANTENNA
- Antenna footprint: 40 cm x 50 cm
- Hardware channels: 2
- Antenna central frequencies: 250 MHz and 700 MHz
- Antenna orientation: Perpendicular, broadside
- Sampling frequency: 400 kHz
DATA ACQUISITION
- Acquisition speed: More than 10 km/h
- Scan rate per channel for 512 samples per scan: 381 scans per second
- Scan interval: 42 scans per metre
- Positioning: 2 integrated encoders (GPS and/or TPS)
CONTROL UNIT
- Power consumption/power supply: 13.3 W / Rechargeable SLAB (Sealed Lead Acid Battery) 12 V DC, 12 Ah
- Operating temperature range: -10°C to +40°C
- Weight: 27 kg
- Protection: IP65
