Leica BLK3D 3D Measurement

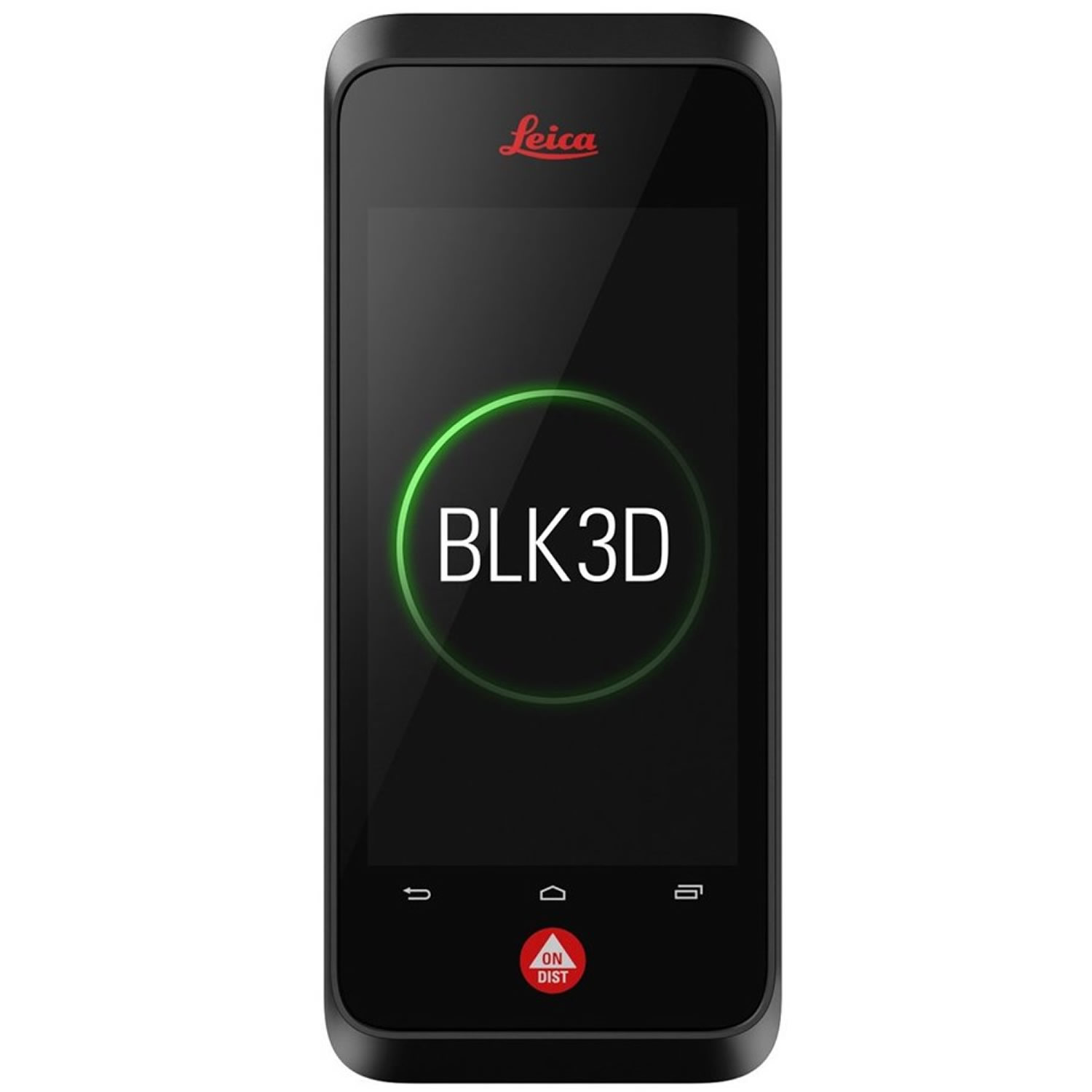

LEICA BLK3D

The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record. Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

• Take a picture. Measure anything: The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.
• The art of photogrammetry. Simplified: Un-matched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.
• Access projects. Anywhere, anytime: Measure in your image – on the handheld imager, on the desktop, on-site or in the office.
• Working with digital floorplans: Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.
• New dimensions for 2D pictures: The BLK3D creates images that contain precise three-dimensional measurements.
• Progressive project documentation for AEC: Capture critical moments throughout the life of a building.
• Object detection and snapping: Auto-Snapping uses computer vision technologies to select the right points for your measurements.
• Store. Organize. Share.: Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats
• BLK3D ACCURACY: The BLK3D represents a new way to capture and document reality by combining measurement sensors, software, and on-device data processing. Its integrated stereo-camera captures images that provide a complete 3D record, with EDM accuracy of 1mm*, 2D in-picture accuracy of +/- 3mm*, 3D in-picture accuracy of +/- 6mm*

SPESIFICATION

Design & Physical Dimensions

• Material: Black anodized aluminium
• Dimensions: 180mm x 77mm x 27mm
• Weight: 480g
• Connector: USB-C
• Display: 5’’ HD IPS Capacitive Touch Display
• P2P Support: Quick Mount on Leica DST 360

Power

• Battery Type: Swappable, rechargeable Li-Ion battery
• Capacity: 14 Wh
• Charging: via USB-C connector or external charger

Environmental

• Robustness: Designed for any construction site
• Operating Temperature: -10°- +50°C

Imaging

• Camera: 2 x 10MP with 80°Field of View
• Algorithms: Advanced SGM algorithmic on-board (GPU) + EDM, Structure from Motion (SFM) algorithmic for poses and orientation

Operating System & Processors

• Operating System: Android 7 (Nougat) with GMS certification
• CPU: Qualcomm Snapdragon 820E (Quad Core @ 2.35 GHz)
• Storage: 64G
• RAM : 4GB
• Communication: WLAN (5GHz), Bluetooth 4.1 and 2.1

Performance

• Measurement Speed: <1 sec
• Range: up to 20m (imaging); 250m (Electronic Laser Distance Measurement)
