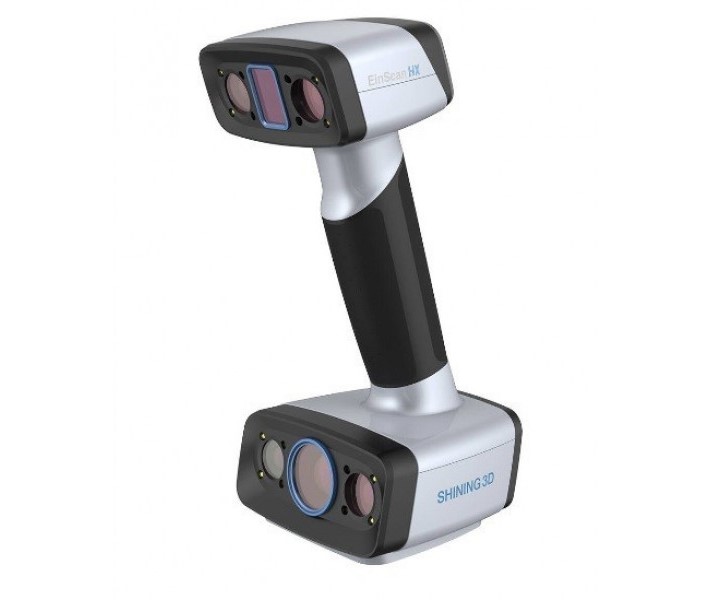

EinScan HX Handheld 3D Scanner

EINSCAN HX

The Einscan HX is an industrial handheld 3D scanner, combining two light sources: laser and structured light. It is a premium lightweight device with a futuristic and ergonomic design that can be taken to remote sites for scanning. The device can boast high-resolution scans, large scan volume, fast scan speed, and a handful of other useful features. It features an innovative hybrid system that employs dual blue LED lights allowing it to enter the rapid 3D scanning mode. Besides, there is a laser scanning mode designed to capture dark-colored models and objects with a reflective surface. Thanks to its built-in color camera, the scanner supports full-color capture and allows for texture tracking.

The recommended object size range for the scanner is between 30 and 300 cm.

The scanner can be used in a plethora of different applications, such as:

• Architecture
• Art and generative design
• Reverse engineering
• Manufacturing
• AR, VR, 3D modeling
• Heritage preservation, artifact restoration
• Science and education
• Healthcare
• Full-body and partial human scans

Specifications:

General Specifications

• Built-in Color Camera: Yes
• Camera frame rate: 55 fps
• Working distance: 470 mm
• Connection: USB 3.0
• Output Formats: OBJ, STL, ASC, PLY, P3, 3MF

Requirements

• Recommended OS: Win10/64 bit
• Recommended graphics card：NVIDIA GTX1080 and higher
• Recommended video memory：≥4G
• Recommended processor：I7-8700
• Recommended memory：≥32 GB
• Certifications: CE，FCC，ROHS，WEEE，KC

Rapid Scan Mode

• Light source: Blue LED
• afety: LED light (eye-safe）
• Scan accuracy: Up to 0.05 mm
• Volumetric accuracy: 0.05+0.1 mm/m
• Scan & align speed: 1,200,000 points/s, 20 fps
• Align modes: Markers Alignment, Feature Alignment, Hybrid Alignment, Texture AlignmentDepth of fi
• eld: 200-700 mm
• Maximum FOV: 420 x 440 mm
• Point distance: 0.25-3 mm
• Texture scan: Yes

Laser Scan Mode

•  Light source: 7 blue laser crosses
• Safety: CLASS І (eye-safe)
• Scan accuracy: Up to 0.4 mm
• Volumetric accuracy: 0.04+0.06 mm/m
• Scan & align speed: 480,000 points/s, 55 fps
• Align modes: Markers Alignment
• Depth of field: 350-610 mm
• Maximum FOV: 380 x 400 mm
• Point distance: 0.5-3 mm
• Texture scan: No

Dimensions and Weight

• Frame dimensions: 108 x 110 x 237 mm
• Weight: 710g

Scanning modes specifics
