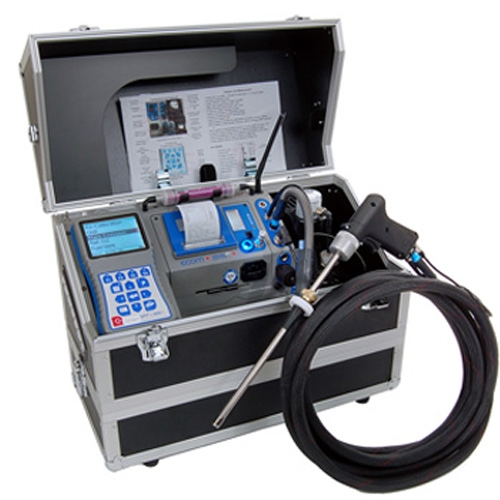

ECOM J2KN
The ECOM J2KN is the “heavy-duty”, version of the J2K, with the analyzer and all of it’s outstanding features built into a rugged hard-sided, aluminum reinforced case.
With wireless remote control, the J2KN’s handheld remote allows complete operation of the analyzer showing all values at a glance, zoom display capability, and plug-in memory up to 256 MB. The tactile keypad guides the operator through the various functions of the analyzer.
The remote display feature makes the J2K an ideal emission analyzer where combustion controls are located away from the flue test port on large combustion systems. The J2K can be fitted with up to 5 gas sensors to measure O2, CO, NO, NO2, and Combustibles, along with gas and ambient temperatures, stack draft & pressure, plus calculations of CO2, efficiency, excess air, and oxygen correction to 20%.
Features :
- In-line flowmeter with 3.5+ lpm pump
- Measures O2 CO NOx Low NOx SO2 and combustibles
- Stack Temperature and Draft Measurement
- Thermoelectric Gas cooler & Automatic
- Ambient Flue Gas Sensor Temperature Measurement
Technical Specifications :
- Measurement – Oxygen (O) : Range: 0 – 21% vol.
- Carbon Monoxide © : Range: 0 – 4000 ppm
- Carbon Monoxide (V) : Range: 1 – 40000 ppm
- Nitric Oxide (N) : Range: 0 – 4000 ppm
- Nitric Oxide (.N) : Range: 0 – 400 ppm
- Nitrogen Dioxide (X) : Range: 0 – 500 ppm
- Nitrogen Dioxide (.X) : Range: 0 – 50 ppm
- Sulfur Dioxide (S) : Range: 0 – 5000 ppm
- Combustibles (H) : Range: 0 – 6.00 % vol
- Gas Temperature : Range: 32 – 1800 F
- Ambient Temperature : Range: 0 – 250 F
- Draft / Pressure : Range: ± 40\” H2O
- Operating Temperature : Core temperature of the instrument is monitored continuously. Internal Temperature Compensation software assures accurate sensor response ov
- Display : Backlit adjustable contrast and zoom displays all parameters simultaneously.
- Sample Line : 15′ high-temp flex hose w/thermocouple wire
- Dimensions : US: 16 x 10 x 12 in. Metric: 40.6 x 25.4 x 30.48 cm
